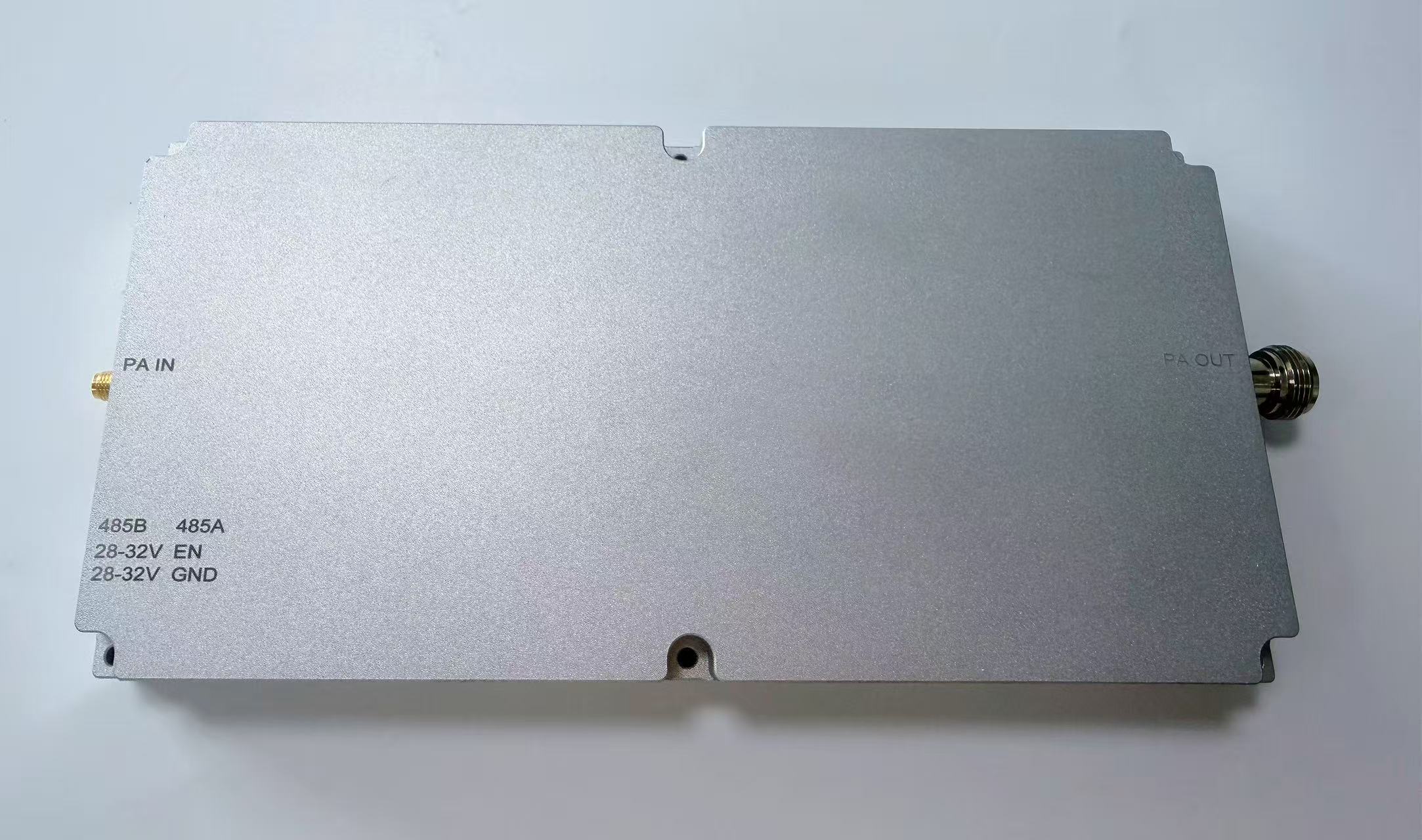

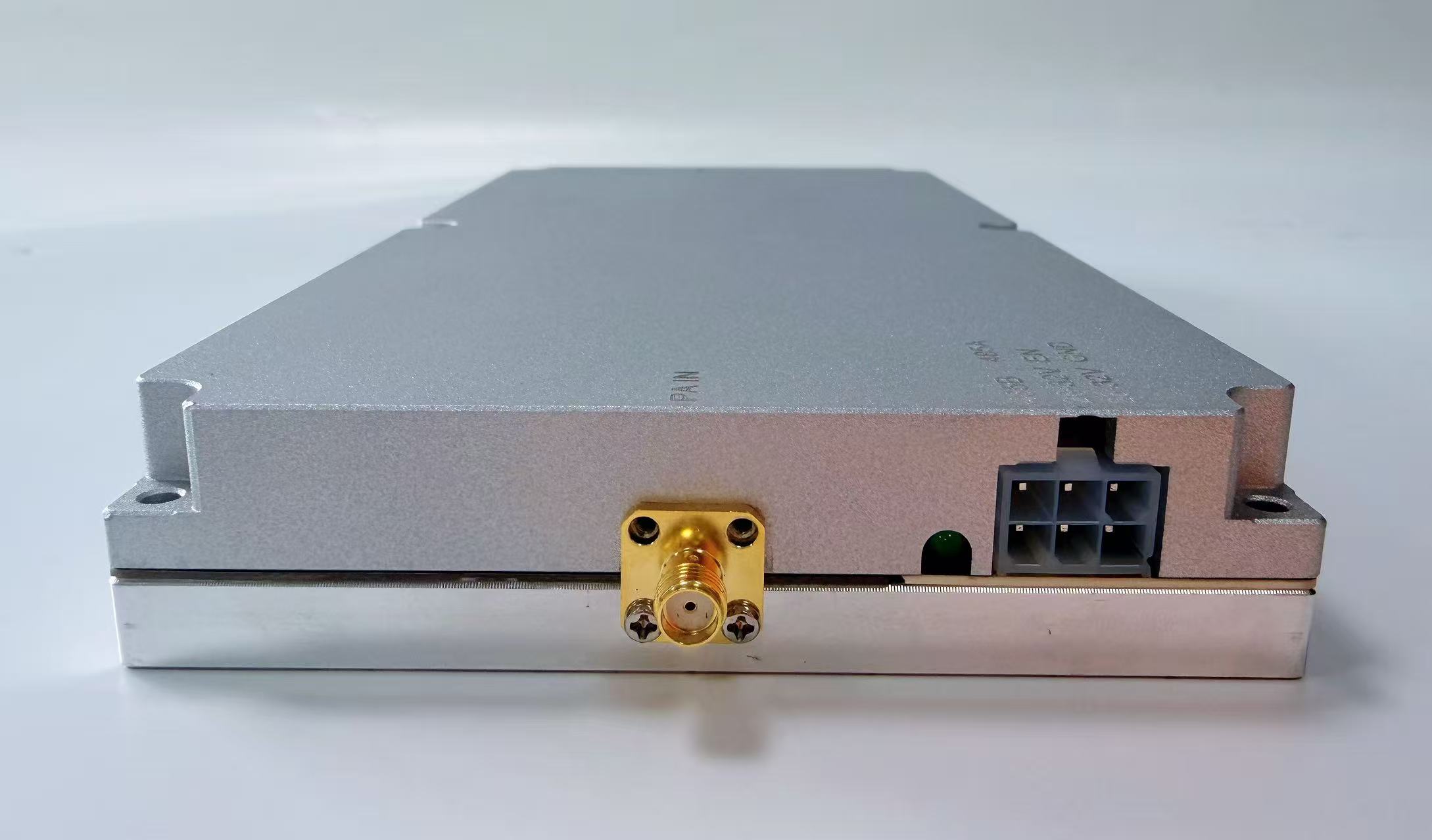

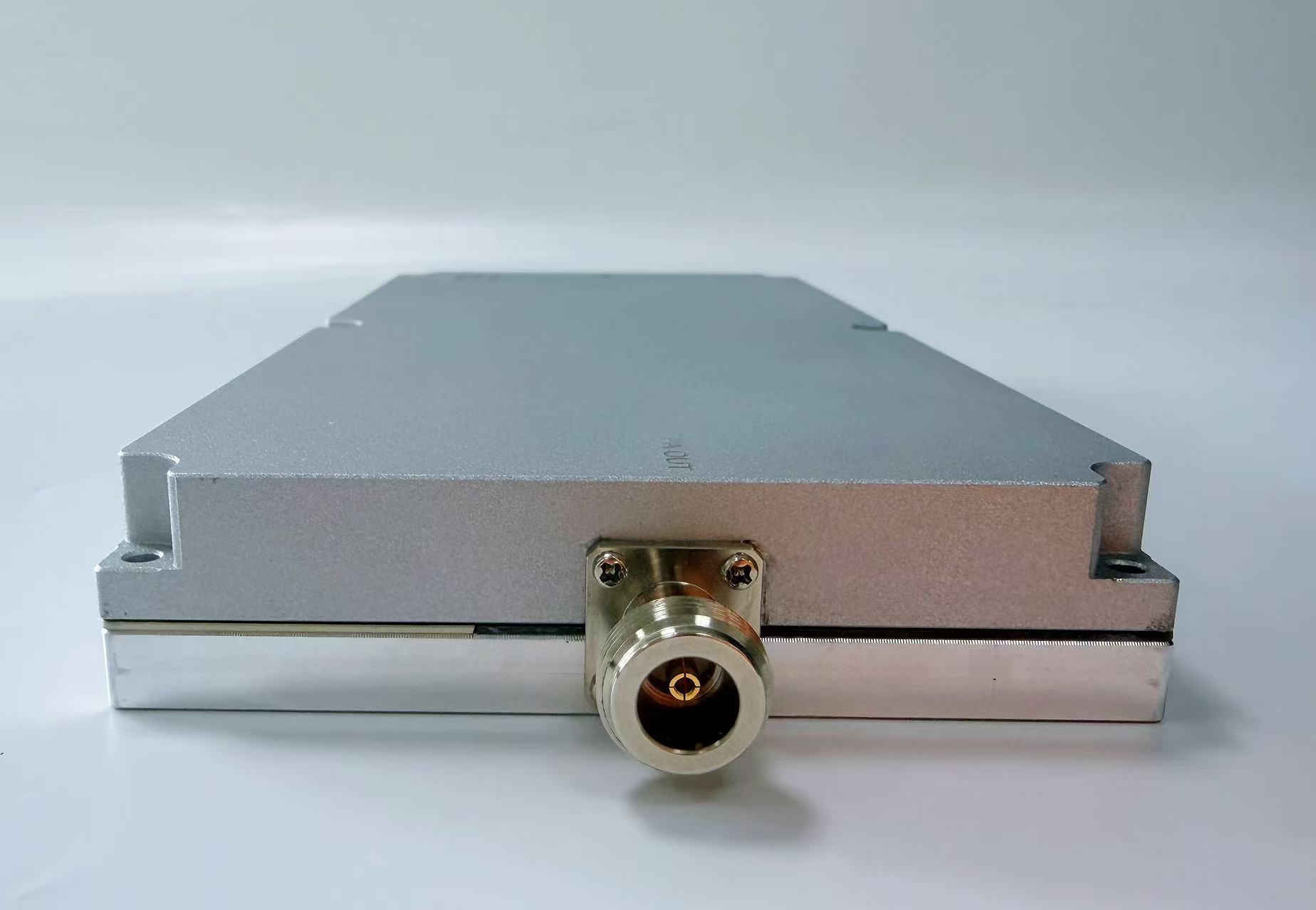

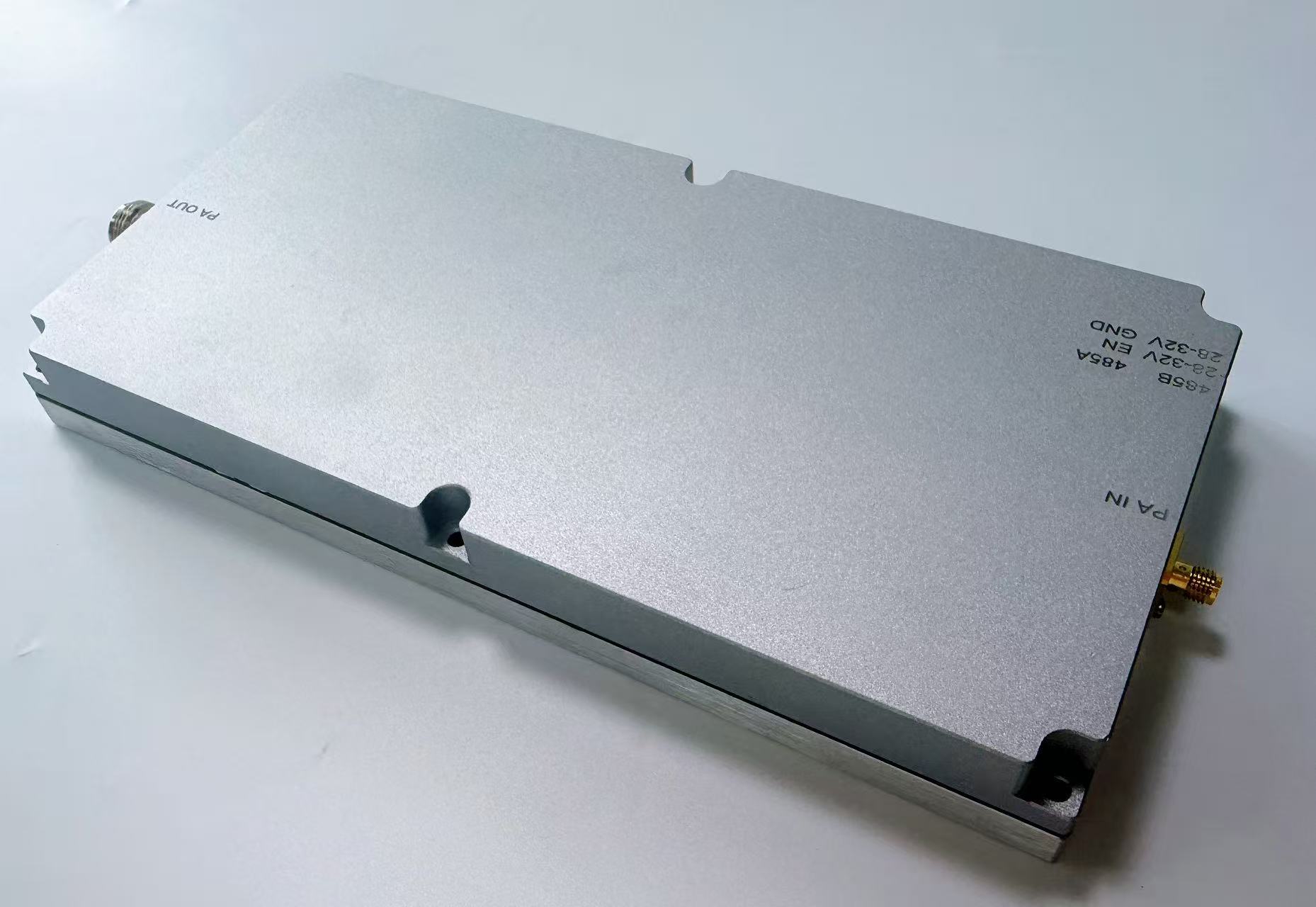

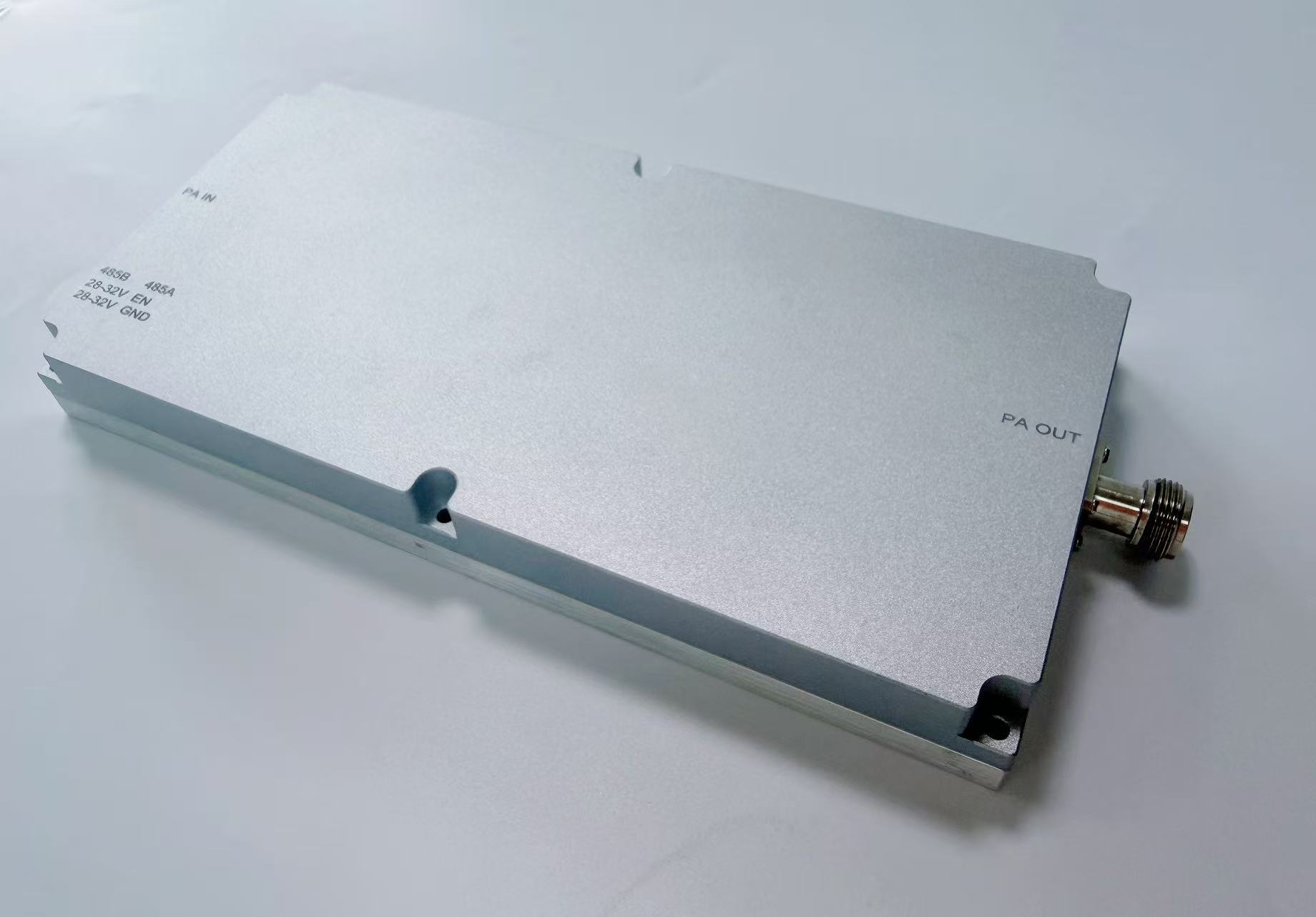

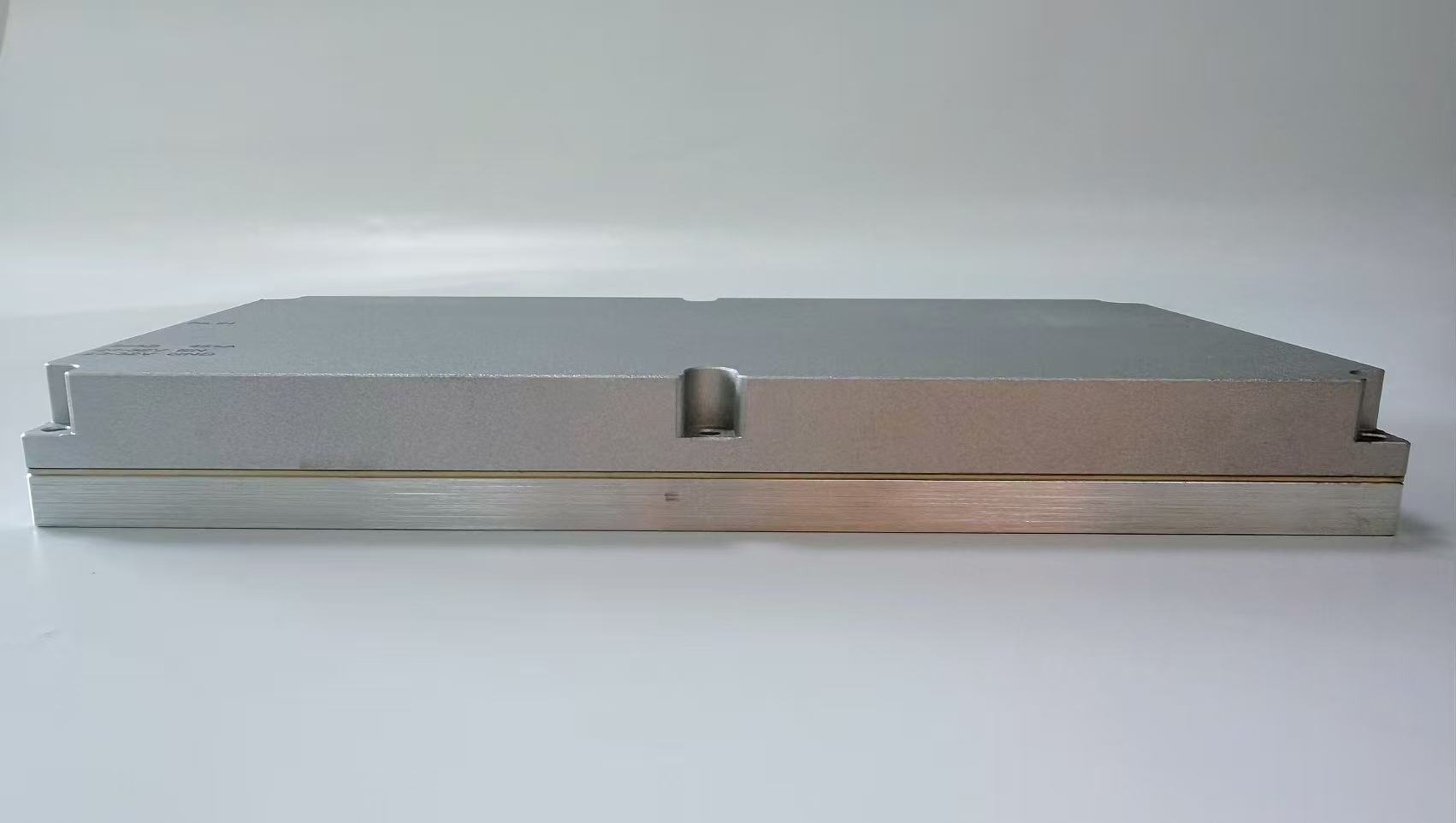

Uziwave GRQ-20-700M-100W GaN Broadband Amplifier

Features:
1. Ultra-Broadband Operation
Covers 20–700 MHz in a single module, eliminating the need for band-switching.
2. High Linear Output Power
Delivers ≥49 dBm (≈80 W) at 28 V and ≥49.5 dBm (≈89 W) at 32 V, suitable for high-power transmission systems.
3. GaN Technology with High Efficiency
Gallium nitride (GaN) design ensures high power density, low current draw (≤10 A @ 28 V, ≤9 A @ 32 V), and improved thermal performance.
4. Wide Gain Adjustment Range
Provides ≥25 dB of attenuation control with precise 1‑dB step linearity, enabling flexible system integration.
5. Comprehensive RS485 Monitoring & Control
Supports remote settings (on/off, gain) and real-time queries (status, temperature, output power) via standard RS485 interface.
6. Smart Thermal Management
Built-in over-temperature protection with programmable threshold (+100 °C alarm/shutdown, +80 °C auto-recovery) ensures reliable operation in harsh environments.
7. Wide Operating Temperature Range
Qualified for –40 °C to +55 °C, suitable for outdoor, industrial, and defense applications.
8. External Enable Control
TTL-compatible EN pin with high-level disable (1.8–5 V) and low-level enable (0–0.5 V); floating defaults to normally ON for fail-safe operation.
9. Compact Mechanical Footprint
Space-saving dimensions of 222 × 110 × 26 mm, facilitating integration into rack-mount or portable systems.
10. Standard RF Interfaces
SMA input and N-type output connectors for easy cabling and system compatibility

Quantity:
Availability:





Inquire Add to Basket

Product Description

Features:

Ultra-Broadband Operation Covers 20–700 MHz in a single module, eliminating the need for band-switching.
High Linear Output Power Delivers ≥49 dBm (≈80 W) at 28 V and ≥49.5 dBm (≈89 W) at 32 V, suitable for high-power transmission systems.
GaN Technology with High Efficiency Gallium nitride (GaN) design ensures high power density, low current draw (≤10 A @ 28 V, ≤9 A @ 32 V), and improved thermal performance.
Wide Gain Adjustment Range Provides ≥25 dB of attenuation control with precise 1‑dB step linearity, enabling flexible system integration.
Comprehensive RS485 Monitoring & Control Supports remote settings (on/off, gain) and real-time queries (status, temperature, output power) via standard RS485 interface.
Smart Thermal Management Built-in over-temperature protection with programmable threshold (+100 °C alarm/shutdown, +80 °C auto-recovery) ensures reliable operation in harsh environments.
Wide Operating Temperature Range Qualified for –40 °C to +55 °C, suitable for outdoor, industrial, and defense applications.
External Enable Control TTL-compatible EN pin with high-level disable (1.8–5 V) and low-level enable (0–0.5 V); floating defaults to normally ON for fail-safe operation.
Compact Mechanical Footprint Space-saving dimensions of 222 × 110 × 26 mm, facilitating integration into rack-mount or portable systems.
Standard RF Interfaces SMA input and N-type output connectors for easy cabling and system compatibility

Technical Specification:

Product Name:

GRQ-20-700M-100W-222110-(28–32V) GaN-EN-485

Cautions

Test Signal: CW signal during test.
Supply Voltage: 28–32 V DC, GaN technology, dual-wire feed.
External EN Enable:
- High level (DC +1.8 V to +5 V) → Disable
- Low level (DC 0 V to +0.5 V) → Enable
- Floating (open) → Default Normally ON.
Output Protection: No internal isolator; open-circuit at output is prohibited.
Output Connector: N-type female.

Items:	Quality Standards
Operating Frequency Band:	700–2700 MHz
Max Gain:	53 – 58 dB (over full operating band
Maximum Output Power:	@28 V: ≥49 dBm; @32 V: ≥49.5 dBm
Maximum Input Level:	+5 dBm
Gain Adjustment Range:	≥25 dB
Automatic Gain Control:	None
Gain Adjustment Flatness:	At 10 dB attenuation: 1 dB step At 20 dB attenuation: 1 dB step At 25 dB attenuation: 1 dB step
Operating Voltage:	28 – 32 V DC, GaN, dual-wire power supply
Operating Current:	@28 V: ≤10 A; @32 V: ≤9 A
VSWR:	≤2:1 (to protect test equipment; output not tested)
Operating Temperature Range:	-40～+55℃
Over-temperature Protection:	Shutdown at +100℃; Recovery at 80℃
Baud Rate:	19200
Monitoring Function:	RS485 interface communication Settings: On/off, gain Queries: Module status (including PA status, over-power alarm, over-temperature alarm), PA temperature, PA ATT value, downstream output power Over-power alarm: Triggered when power exceeds max output power +2 dB Over-temperature alarm: Recommended threshold at +85℃; Alarm and shutdown when temperature exceeds +85℃; Recovery at 65℃ PA temperature detection: Range includes but not limited to -25℃～+85℃, accuracy ±3℃ Downstream power detection: Total power detection, multi-tone signal test, range >20 dB, accuracy <±3 dB
Connectors:	2 connectors: Input – SMA (female); Output – N-type (female)
Mechanical Dimensions:	220 × 110 × 26 mm
