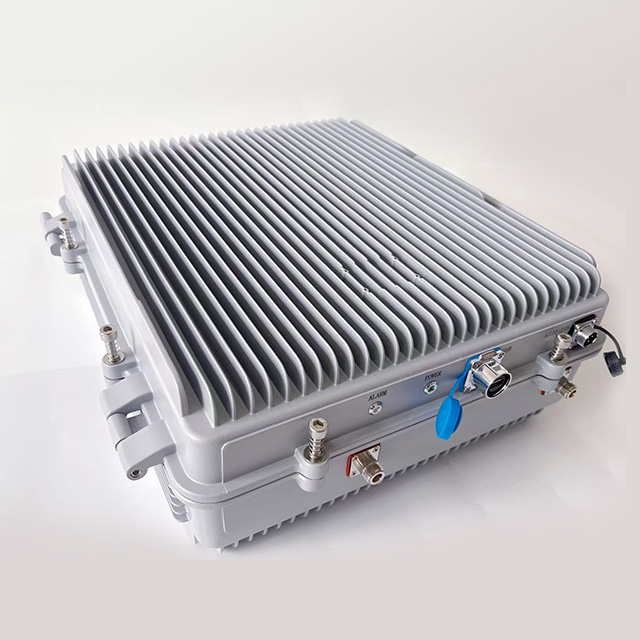

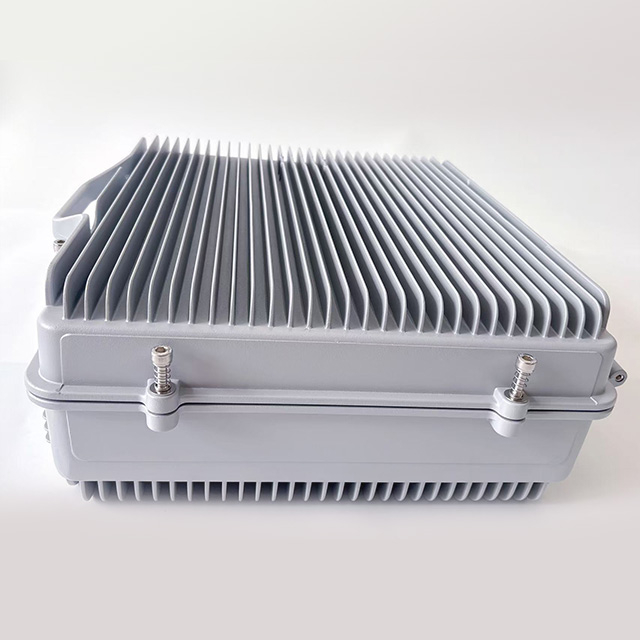

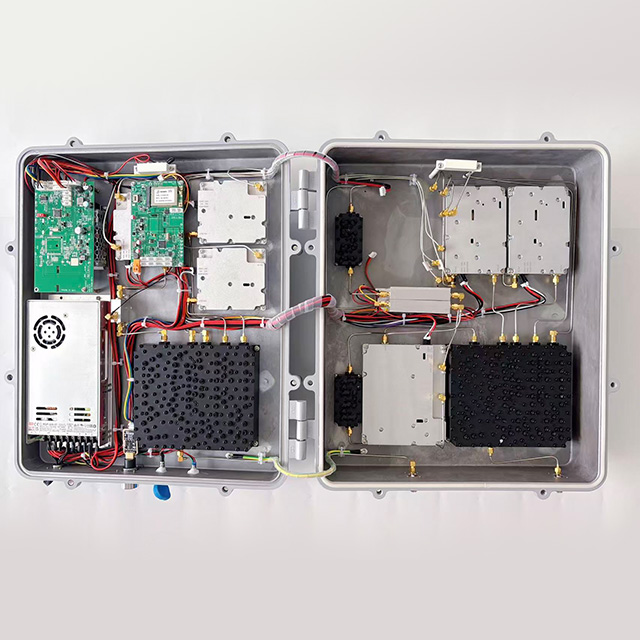

UZI-FDD 1.8G ICS + FDD 2.1G ICS + TDD 3.5G Analog 5W Wireless Repeater

Items:

Uplink (UL) & Downlink (UL) Specifications:

Frequency Range:

1. B3 (Band With 65 MHz):

a. UL:1710 MHz - 1775 MHz

b. DL:1805 MHz - 1870 MHz

2. B1

a. UL:1920 MHz - 1980 MHz

b. DL:2110 MHz - 2170 MHz

3. N78

a. UL:3300 MHz - 3570 MHz

b. DL:3300 MHz - 3570 MHz

Max Gain:

1. UL:85±3dB

2. DL:88±3dB

Maximum Output

Power:

1. UL:30±1dBm

2. DL:37±1dBm

Maximum Input Level:

1. UL:0dBm

2. DL:0dBm

Gain Adjustment

Range:

1. UL:≥25dB

2. DL:≥25dB

ALC Range:

1. UL:≥10dB

2. DL:≥10dB

ICS Self-oscillation

Cancellation Degree

(for B1 & B3):

1. UL:≥ 25 dB

2. DL:≥ 25 dB

ICS (for B1 & B3):

1. UL:Configured

2. DL:Configured

Gain Flatness

1. UL:

a. ATT10dB： ≤±1dB

b. ATT20dB： ≤±1dB

c. ATT25dB： ≤±1.5dB

2. DL

a. ATT10dB： ≤±1dB

b. ATT20dB： ≤±1dB

c. ATT25dB： ≤±1.5dB

In-Band Ripple:

1. UL:≤5dB

2. DL:≤5dB

Out-of-band Rejection

(for B1 & B3):

•0.2 ≤ f_offset_CW < 1.0 MHz: Total Net Gain ≤ 60 dB

•1.0 ≤ f_offset_CW < 5.0 MHz: Total Net Gain ≤ 45 dB

•5.0 ≤ f_offset_CW < 10.0 MHz: Total Net Gain ≤ 45 dB

•10.0 MHz ≤ f_offset_CW: Total Net Gain ≤ 35 dB

Noise Figure:

1. UL:≤6dB

2. DL:≤6dB

Transmission Delay:

1. UL:≤5us

2. DL:≤5us

EVM:

≤6%

VSWR:

1. UL:≤1.5:1

2. DL:≤1.5:1

ACPR:

1. UL:

•B1 & B3: ≤ -45 dBc

•N78: ≤ -41 dBc

2. DL:

•B1 & B3: ≤ -45 dBc

•N78: ≤ -43 dBc

Operating

Temperature:

-25℃ ~ +55℃

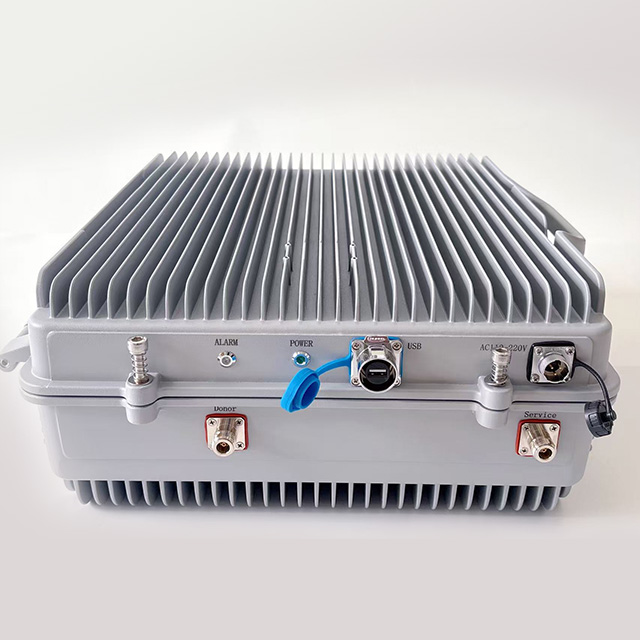

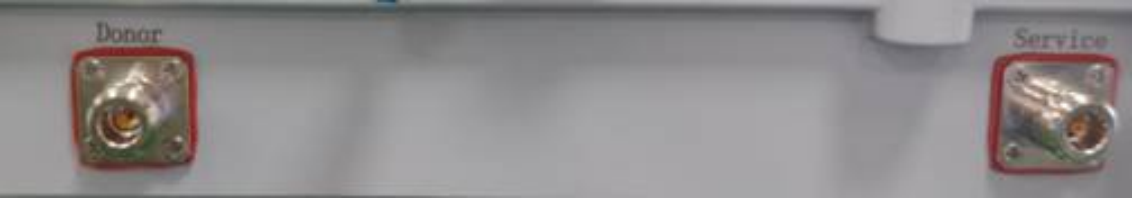

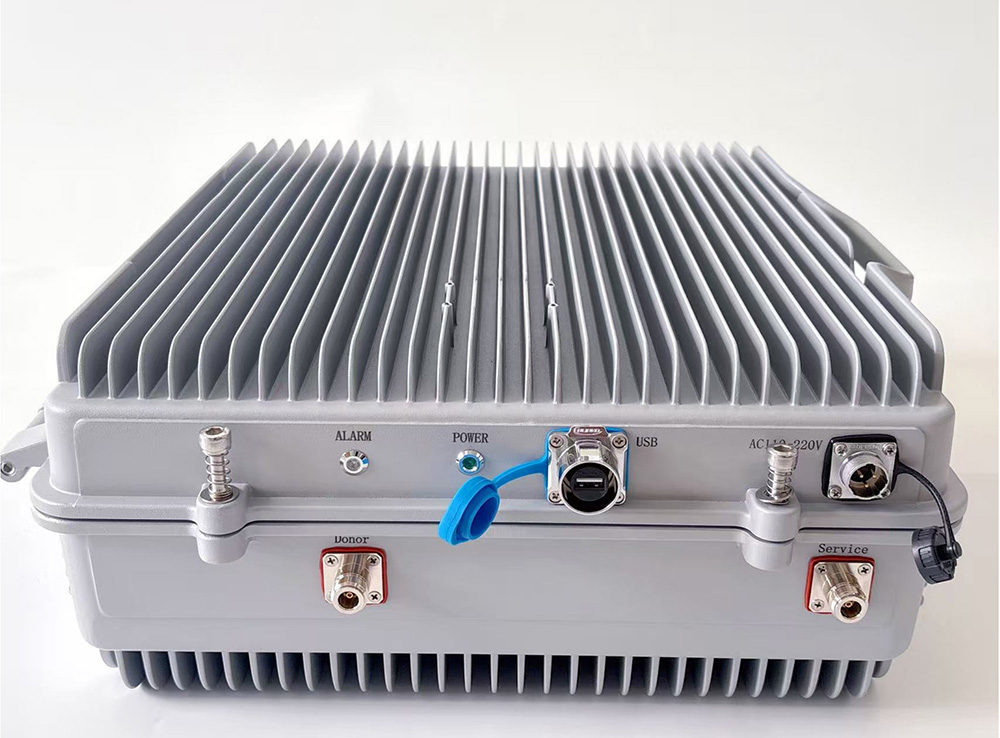

Connector Model:

2 units of N-Female/50 Ω connectors, mounted on the same side of the chassis

External Chassis

Indicator Lights:

Total of 2 indicators:

•Power Indicator: 12V, green

•Alarm Indicator: 3.3V, dual-color

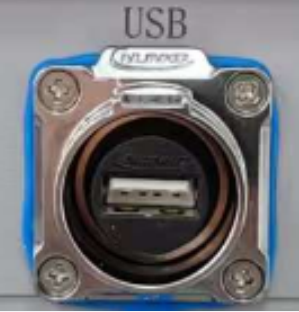

Local Monitoring USB

Port:

The local monitoring port on the chassis is a USB port. Each device is

equipped with 2 data cables at the time of factory shipment

Power Supply:

AC110-220V

Power Consumption:

≤300W

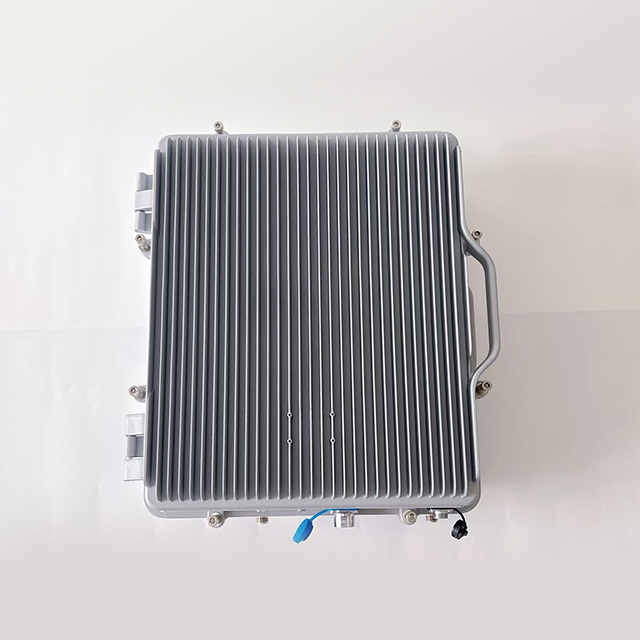

Chassis Dimensions:

500*440*187mm

Weight

≤30kg

Monitoring & Modem

Functions:

•Local monitoring: USB interface

•Remote monitoring: via MODEM or RJ45 interface
