Features:
1. Dual Monitoring Interfaces with Complete Accessories
◦ Equipped with a local monitoring USB port and a remote monitoring RJ45 port; each unit comes with a dual-USB connector data cable and a 2-meter RJ45 network cable (both factory-tested to pass quality control) for immediate deployment.
2. Wide Voltage Adaptability & Stable Power Performance
◦ Supports wide AC voltage input (110-220V) to fit diverse power supply scenarios, with power consumption controlled at ≤180W for energy efficiency.
3. Robust Environmental Durability
◦ Operates reliably within a temperature range of -25℃ to +55℃, features an IP65 waterproof rating for outdoor/harsh environment use, and includes a customer-specified lightning arrester for enhanced electrical protection.
4. Professional Interface & Indicator Configuration
◦ Adopts N-Female (50Ω) RF connectors for signal transmission; external chassis indicators (power, operation, alarm) provide real-time device status visibility.
5. Convenient Management with English Interface
◦ Monitoring software comes with an English interface, enabling intuitive local (via USB) and remote (via RJ45) device management.
6. Sturdy Mechanical Design
◦ Features a compact chassis (500*440*187mm) with a weight of ≤28kg for easy installation, and uses an LP20 model power cable socket for secure power connection.
Technical Specification:
Product Name:
1. UZI-TETRA-400M-XDZFZ-20W
Items: | Uplink (UL) & Downlink (UL) Specifications: |
Frequency Range: | 1. UL:413.750~415.750M 2. DL:423.750~425.750M |
Max Gain: | 1. UL:33±1dB 2. DL:43±1dB |
Maximum Output Power: | 1. UL:Uncontrolled 2. DL:44±1dBm |
Maximum Input Level: | 1. UL:-10dBm 2. DL:-10dBm |
Gain Adjustment Range: | 1. UL:≥25dB 2. DL:≥25dB |
ALC Range: | 1. UL:≥20dB 2. DL:≥20dB |
Gain Flatness: | 1. UL: a. ATT10dB： ≤±1dB b. ATT20dB： ≤±1dB c. ATT25dB： ≤±1.5dB 2. DL a. ATT10dB： ≤±1dB b. ATT20dB： ≤±1dB c. ATT25dB： ≤±1.5dB |
Out-of-band Rejection： | ≤-45dBc (1MHz offset from the band edge) |
In-Band Ripple: | In-Band Ripple: |
Noise Figure: | ≤5dB |
Transmission Delay: | ≤5μs |
Tx-Rx Isolation: | ≥55dBc |
EVM: | ≤5% (Peak-to-Average Power Ratio 10.0dB) |
VSWR: | ≤1.5:1 |
Third-order Intermodulation (IM3): | ≤-45dBc |
Working Temperature: | -25〜+55℃ |
Connector Model： | N-Female / 50 Ω |

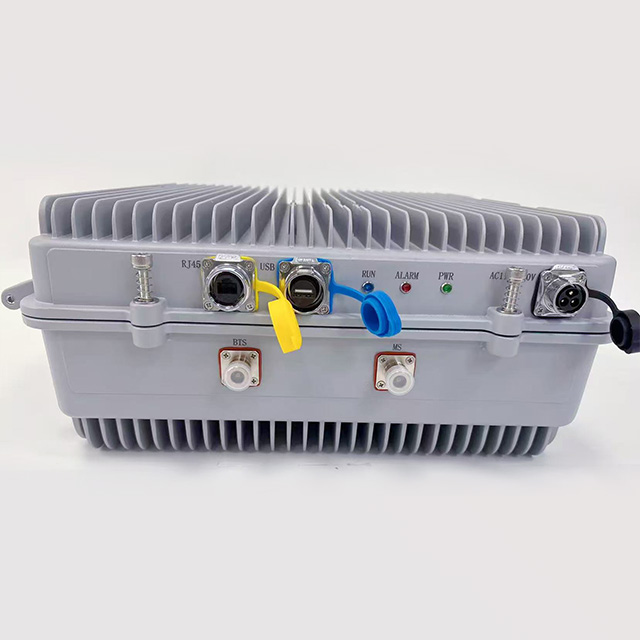

External Chassis Indicator Lights： | Power indicator light, operation indicator light, and alarm indicator light |
Lightning Arrester： | Special customer requirement: A lightning arrester shall be installed on the equipment |

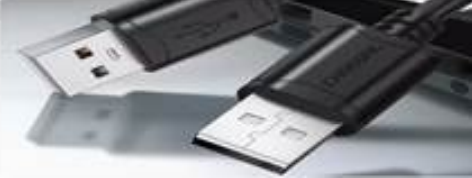

Local Monitoring USB Port:  | The local monitoring port of the chassis is USB; each device is equipped with one USB data cable with USB connectors on both ends at the factory (must pass quality control testing).  |
Remote Monitoring RJ45 Connector & Network Cable：  | The remote monitoring port of the chassis is an RJ45 connector; each device is equipped with one 2-meter-long RJ45 network cable at the factory (must pass quality control testing) |
Power Supply： | Wide voltage input: AC 110-220V |
Power Consumption： | ≤180W |
Chassis Dimensions： | 500*440*187mm |
Weight: | ≤28kg |
Waterproof Grade: | IP65 |
Power Cable Socket: | Model: LP20  |
Over-Temperature Protection: | Alarm and shutdown at +85℃, resume operation at 65℃ |
Monitoring Functions: | • Monitoring software: English interface • Local monitoring: USB port • Remote monitoring: RJ45 network port |

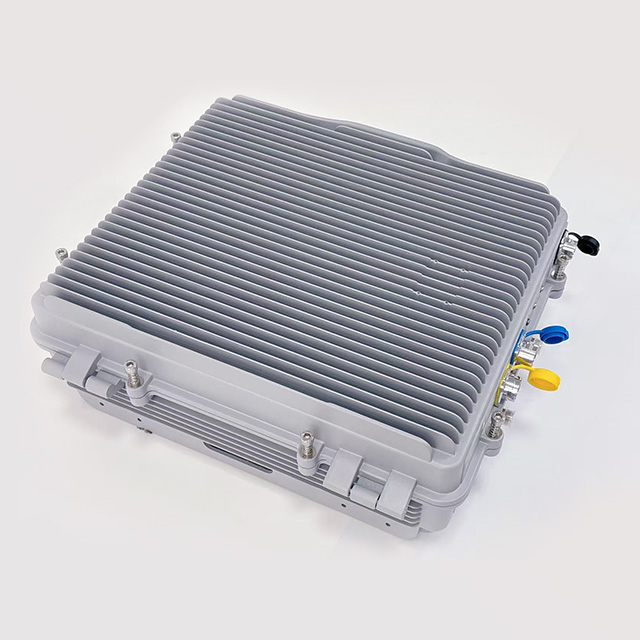

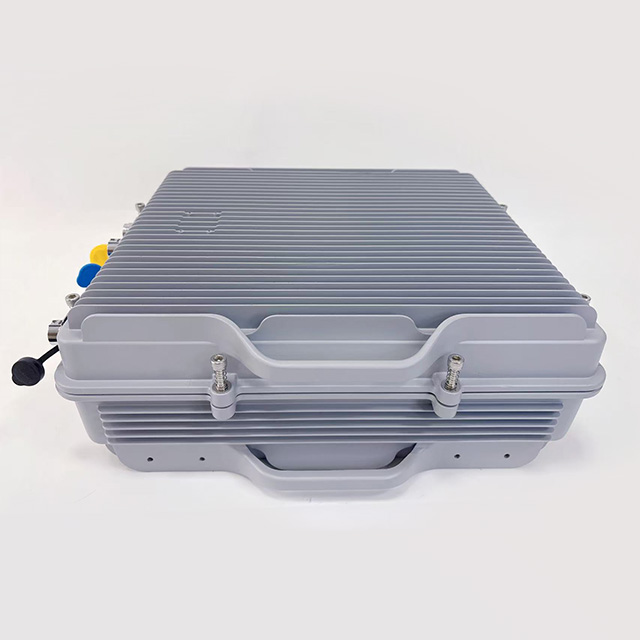

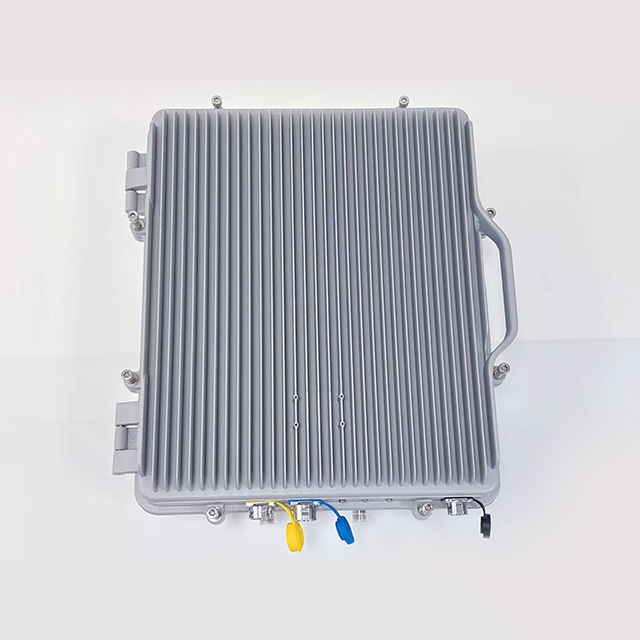

Sample:
