Features:
1. Covers three frequency bands: 400-600MHz, 500-700MHz, and 600-800MHz, with uplink and downlink operating in the same band.
2. Delivers downlink maximum output power of 43±1dBm and gain of 51±2dB, ensuring stable signal transmission.
3. Operates at 28V with a maximum current of ≤5A, featuring over-temperature protection (shutdown at 85℃, restart at 65℃).
4. Boasts excellent performance indicators: EVM ≤5%, VSWR ≤1.4, and transmit-receive isolation ≥55dBc.
Technical Specification:
Product Name:
1. UZI-TDD-400~600M-20W-1914-28V
2. UZI-TDD-500~700M-20W-1914-28V
3. UZI-TDD-600~800M-20W-1914-28V
Items: | Uplink (UL) & Downlink (UL) Specifications: |
Frequency Range: | 1. a. UL:400MHz-600MHz b. DL:400MHz-600MHz 2. a. UL:500MHz-700MHz b. DL:500MHz-700MHz 3. a. UL:600MHz-800MHz b. DL:600MHz-800MHz |
Max Gain: | 1. UL:10±2dB 2. DL:51±2dB |
Maximum Output Power: | 1. UL:Uncontrolled 2. DL:43±1dBm |
Maximum Input Level: | 1. UL:NONE 2. DL:-7dBm |
Gain Adjustment Range: | 1. UL:NONE 2. DL:NONE |
ALC Range: | 1. UL:NONE 2. DL:UNCONTROLLED |
In-Band Ripple: | ≤3dB |
Noise Figure: | ≤3dB |
Tx-Rx Isolation: | ≥55dBc |
EVM: | ≤5% (Peak-to-Average Power Ratio 8.0dB) |
VSWR: | ≤1.4 (Test condition: power on for testing after turning off the downlink power amplifier.) |
Operating Voltage: | 28V |
Operating Current: | ≤5A |
Working Temperature: | -40~+55℃ |
Over-Temperature Protection: | Alarm and shutdown at +85℃, resume operation at 65℃ |
Monitoring Functions: | NONE |
Transmit-Receive Wired Control Interface: | CMOS 3.3V |

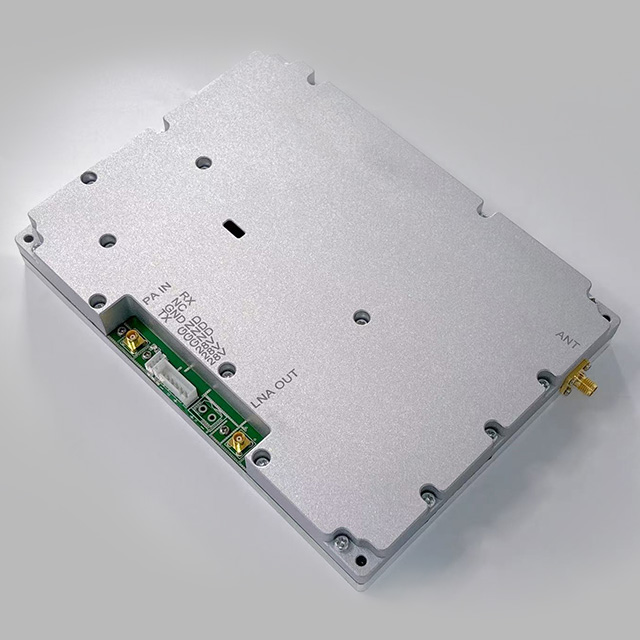

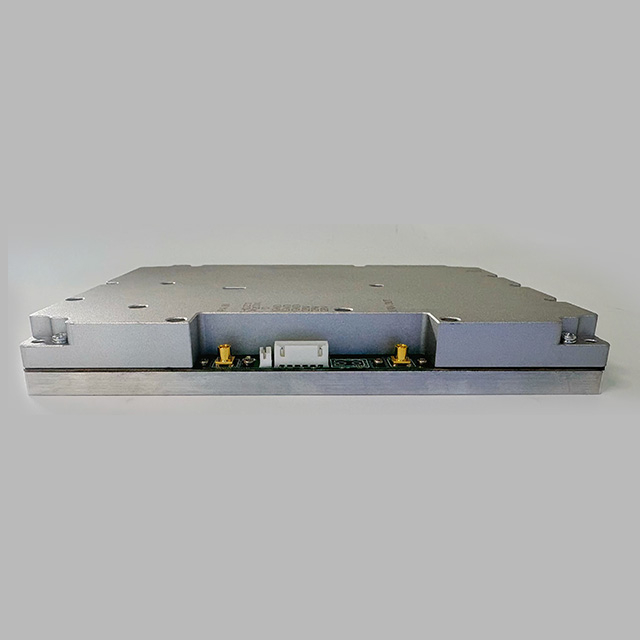

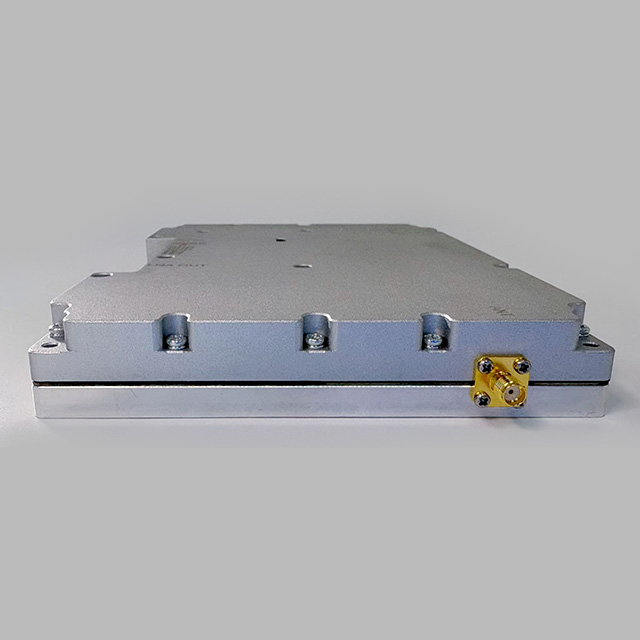

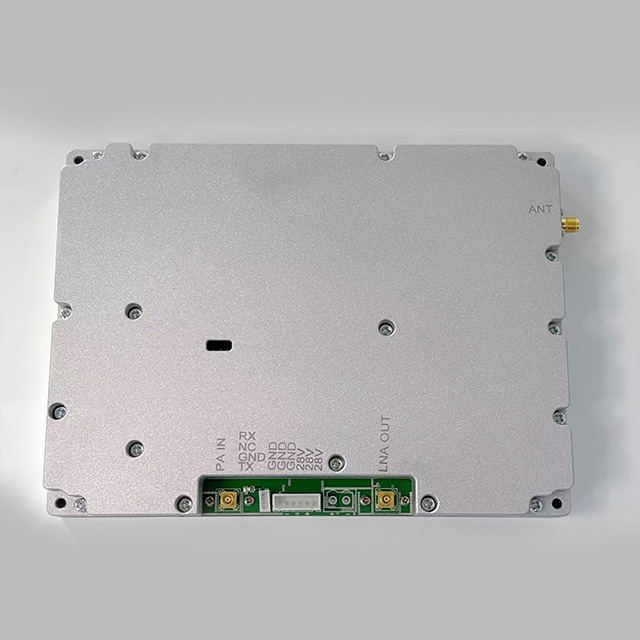

Connectors: | 3 connectors in total, PAIN/LNA OUT are MCX connectors, ANT is an SMA connector |
Mechanical Dimensions | 190*140*24 |

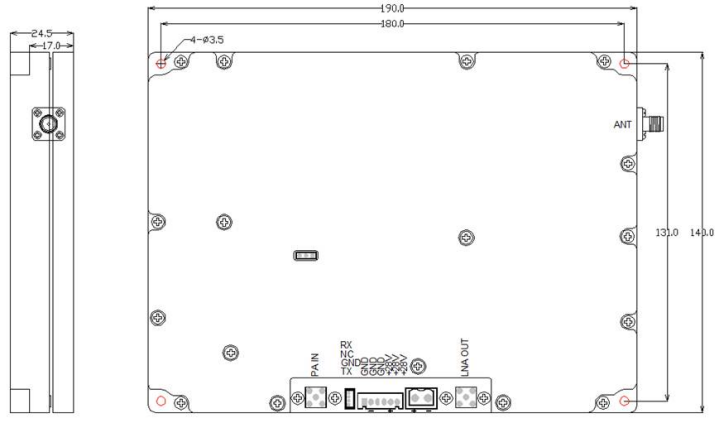

Dimensional Drawing:
1.RX:LNA (uplink) switch, CMOS 3.3V high level turns it on, low level turns it off.
2.TX:PA (downlink) switch, CMOS 3.3V high level turns it on, low level turns it off.
