Features:
1.Broad Frequency Coverage with Multiple Models: Available in 5 frequency bands (900- 1100MHz, 1.2-1.4GHz, 2.4-2.6GHz, 3.3-3.5GHz, 5.8-6.0GHz), fully meeting the application needs of different TDD ad-hoc network scenarios.
2.MIMO Mode & Dual-Channel Testing: Adopts MIMO working mode, requiring both uplink and downlink channels to be tested, ensuring stable signal transmission and reliable
performance in ad-hoc network communication.
3.Excellent Electrical Performance: Features low noise figure (≤4.5dB for uplink), small in- band ripple (≤2.5dB), and high transmit-receive isolation (≥55dBc), with EVM ≤8% (10dB peak-to-average ratio) to ensure clear and stable signal quality.
4.Compact Design & Easy Installation: Mechanical dimensions of 50×40×10mm, equipped with 6 IPEX connectors; mounting hole diameter φ2.7mm (matching φ2.5mm screws),
compact and lightweight for convenient installation in various equipment.
5.Stable & Durable Operation: Operates at 5V voltage with maximum current ≤4A, wide operating temperature range of -40~+55℃, suitable for harsh outdoor environments; no RS485 monitoring function, simplified structure and lower failure rate.
Technical Specification:
Product Name:
1. TDD 900-1100MHz Integrated Power Amplifier 1W
a. Model: TDD-900-1100M-1W-5040-MIMO-5V-2.7-M
2. TDD 1.2-1.4GHz Integrated Power Amplifier 1W
a. Model: TDD-1.2-1.4G-1W-5040-MIMO-5V-2.7-M
3. TDD 2.4-2.6GHz Integrated Power Amplifier 1W
a. Model: TDD-2.4-2.6G-1W-5040-MIMO-5V-2.7-M
4. TDD 3.3-3.5GHz Integrated Power Amplifier 1W
a. Model: TDD-3.3-3.5G-1W-5040-MIMO-5V-2.7-M
5. TDD 5.8-6.0GHz Integrated Power Amplifier 1W
a. Model: TDD-5.8-6.0G-1W-5040-MIMO-5V-2.7-M
Items: | Uplink (UL) & Downlink (UL) Specifications: |
Frequency Range: | 1. UL & DL a. 900-1100MHz b. 1200-1400MHz c. 2400-2600MHz d. 3300-3500MHz e. 5800-6000MHz |
Max Gain: | 1. UL:12±2dB 2. DL:38±2dB |
Maximum Output Power: | 1. UL:Uncontrolled 2. DL:30±1dBm |
Maximum Input Level: | 1. UL:NONE 2. DL:-6dBm |
Gain Adjustment Range: | 1. UL:NONE 2. DL:NONE |
ALC Range: | 1. UL:NONE 2. DL:UNCONTROLLED |
In-Band Ripple: | ≤2.5dB (for both uplink and downlink) |
Noise Figure: | 1. UL:≤4.6dB 2. DL:NONE |
Tx-Rx Isolation: | ≥55dBc |
ACPR: | ≤-45dBc |
EVM: | ≤8% (Peak-to-Average Power Ratio 10.0dB) |
VSWR: | ≤1.8:1 (Test with downlink PA powered off. Ensure downlink PA is off before testing, otherwise test instruments may be damaged.) |
Operating Voltage: | 5V |
Operating Current: | ≤4A |
Baud Rate: | 19200 |
Working Temperature: | -40~+55℃ |
Monitoring Functions: | NONE |
Transmit-receive Wire Control Interface: | CMOS 3.3V |
Connectors: | 6 connectors in total, all are IPEX connectors |
Mechanical Dimensions: | 50×40×10mm |

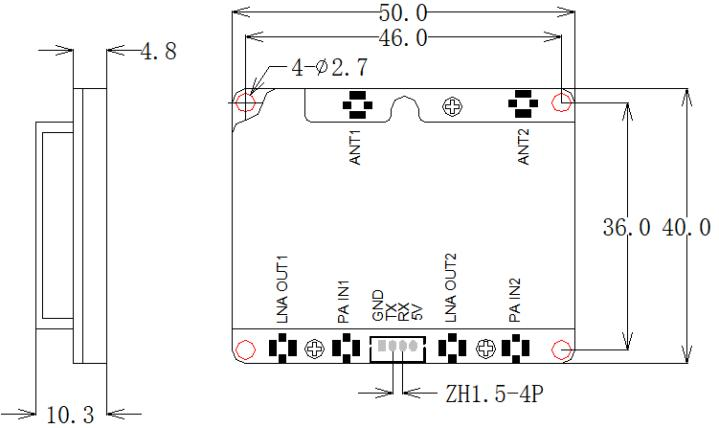

Dimensional Drawing:
1.RX:LNA (uplink) switch, CMOS 3.3V high level turns it on, low level turns it off.
2.TX:PA (downlink) switch, CMOS 3.3V high level turns it on, low level turns it off.

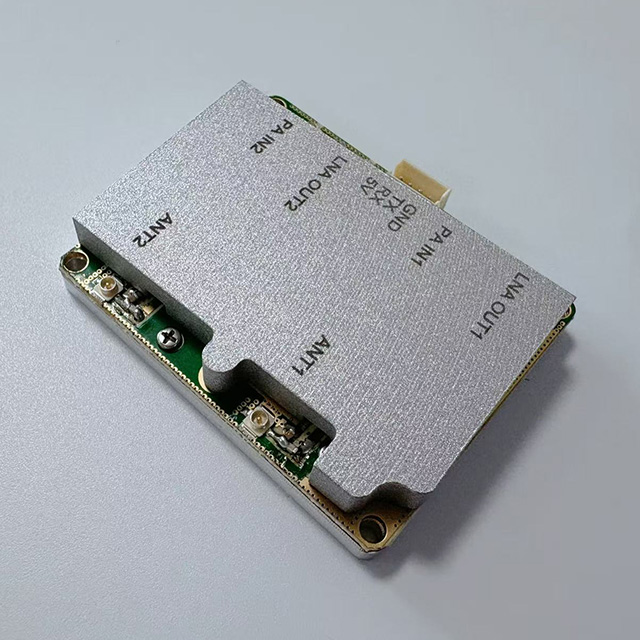

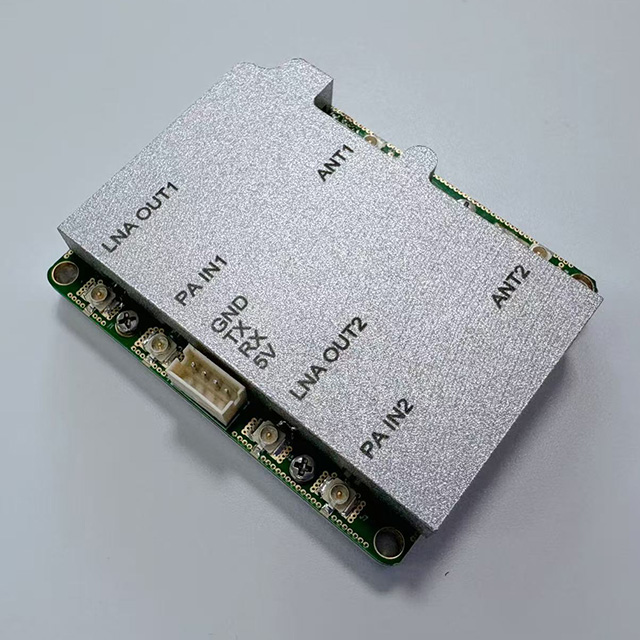

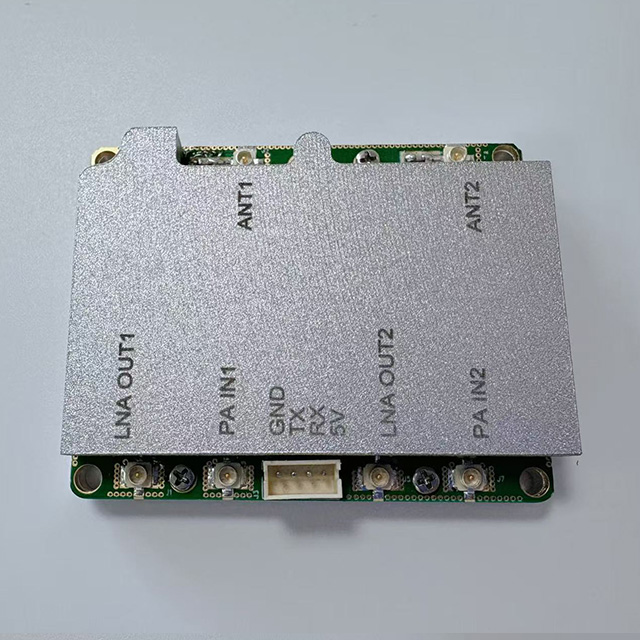

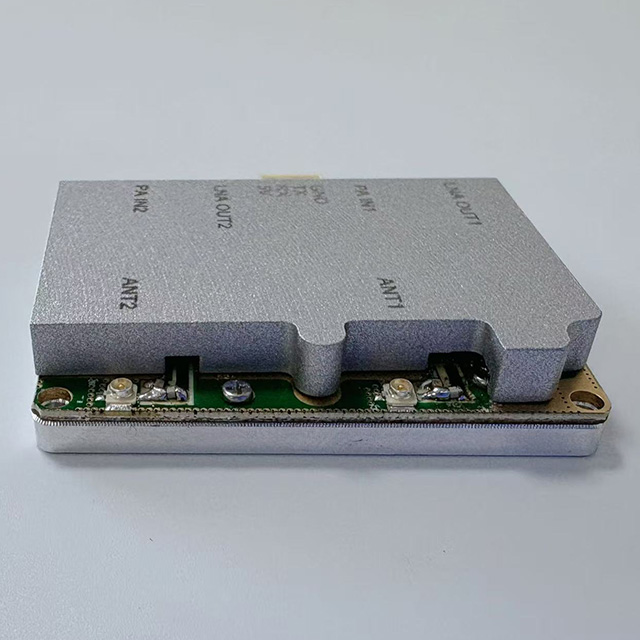

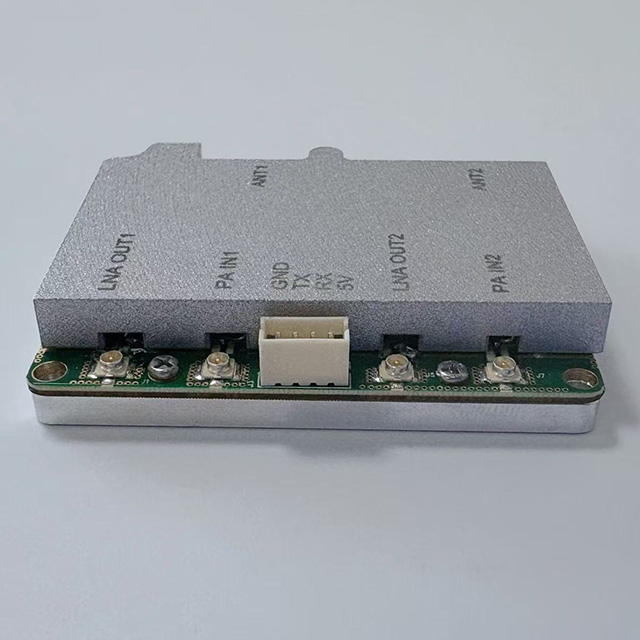

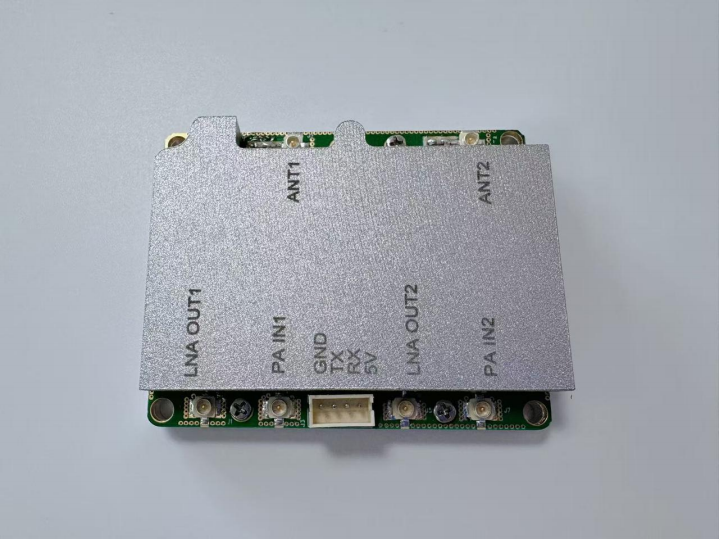

Sample:
