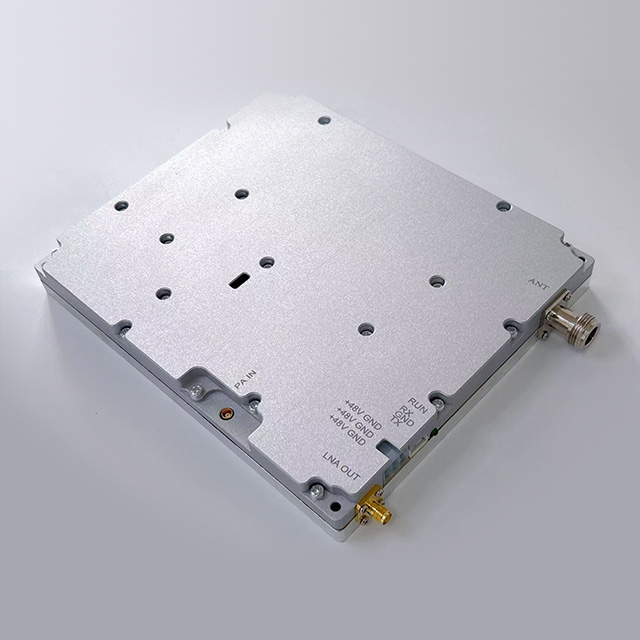

Features:
1.Integrated TDD design for 5.7-5.9GHz ad-hoc networks, delivering 100W high-power output
2.Optimized UL/DL performance: 10±2dB uplink gain with ≤4dB noise figure (filtered UL), 53±2dB downlink gain with ≥50dBm max output power
3.Superior signal quality: ≤2dB in-band ripple, ≥55dBc TX-RX isolation, ≤5% EVM (tested at 8dB PAPR)
4.Robust hardware protection: +95℃ over-temperature shutdown (auto-restart at 75℃), ≤1.4 input/output VSWR
5.Flexible interface configuration: 3 RF connectors (PA IN: MCX; LNA OUT: SMA; ANT: N-K type) with CMOS 3.3V TX/RX wire control
6.Compact 190×160×23mm form factor, 48V/≤11A low-power operation for easy integration
Quality Standard Note:
1.Designed for ad-hoc networks, tested with 8dB Peak-to-Average Power Ratio (PAPR).
2.Uplink integrated with a filter.
3.Supply Voltage: 48V.
4.Monitoring Function: None.
5.Over-temperature Protection: Hardware-controlled with fixed thresholds; shuts down at +95℃ and automatically restarts at +75℃ .

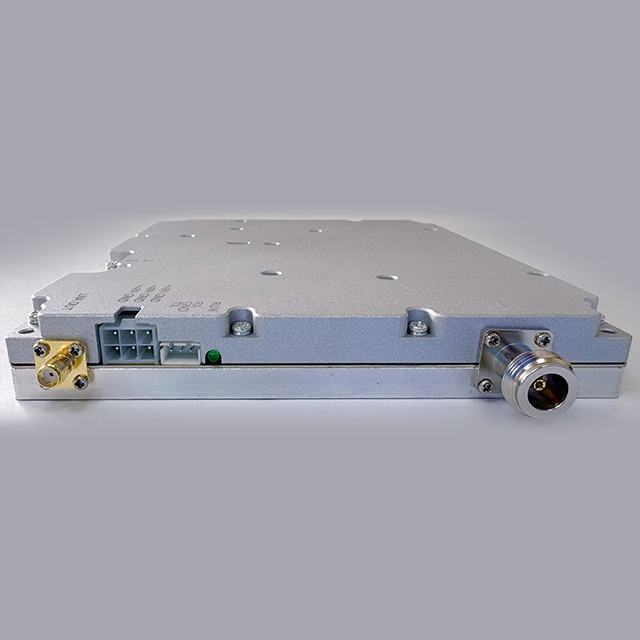

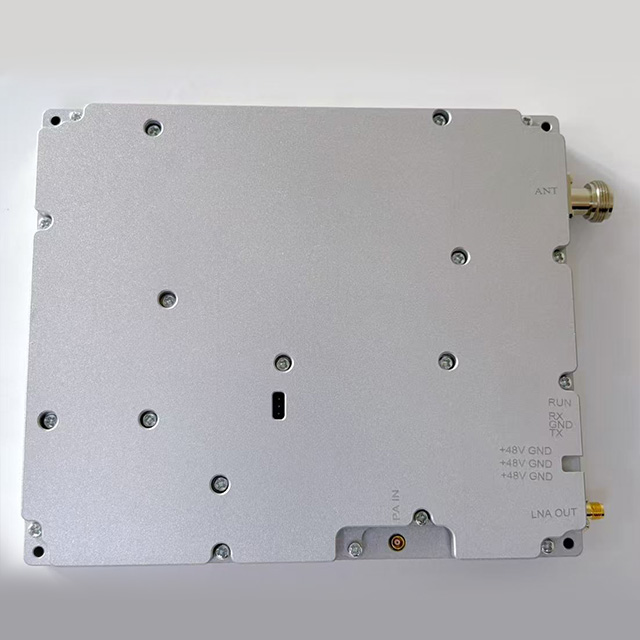

Items: | Uplink (UL) & Downlink (UL) Specifications: |
Frequency Range: | 1. 5700-5900MHz |
Gain: | 1. UL:10±2dB 2. DL:53±2dB |
Maximum Output Power: | 1. UL:- 2. DL:≥50dBm |
Gain Adjustment Range: | 1. NONE |
ALC Range: | 1. NONE |
Noise Figure: | ≤4dB (Uplink with filter) |
VSWR: | ≤1.4 (Tested with DL PA turned off after power-on. Ensure DL PA is off before testing; otherwise, the instrument may be damaged.) |
In-Band Ripple: | ≤2dB (Applicable to both UL & DL) |
TX-RX Isolation: | ≥55dBc (Applicable to both UL & DL) |
Error Vector Magnitude (EVM): | ≤5% (at 8dB PAPR) |
Operating Voltage: | 48V |
Operating Current: | 11A |
Working Temperature: | -40~+55℃ |
Over-Temperature Protection: | Alarms and s huts down at +95℃; restarts at +75℃ |
TX/RX Wire Control Interface： | CMOS 3.3V |
RF Connectors： | 3 connectors in total: PA IN: MCX Connector; LNA OUT: SMA Connector; ANT: N- type (K-type) Connector |
Monitoring Functions: | 1. NONE |
Mechanical Dimensions: | 190×160×23mm |

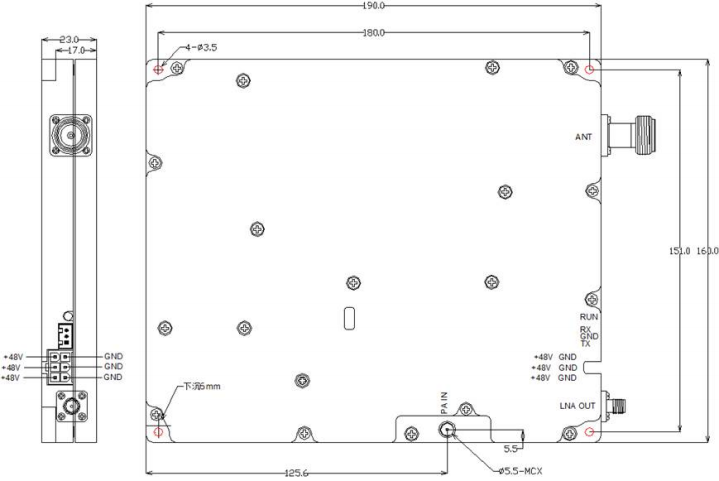

Dimensional Drawing:
