Features:
Single-band TDD 40W PA for 1.3–1.5 GHz – Delivers 46±1 dBm downlink output, designed specifically for ad-hoc networking within the 1300–1500 MHz range.
Uplink with embedded filtering – Includes on-board uplink filtering to suppress out-of-band interference, improving receiver signal purity in congested RF environments.
No RS485 monitoring – hardware-only control – Operates without digital monitoring interfaces; relies on discrete CMOS logic for transmit/receive switching and thermal management.
Hardwired over-temperature protection – Fixed-threshold thermal shutdown at +85 °C with automatic restart at 65 °C, ensuring failsafe operation without software involvement.
Wide-voltage power management – Accepts 16–36 V DC input (broadcast as 28 V on the cover label), accommodating fluctuating power sources in field deployments.
High gain with low noise figure – Provides 51±2 dB downlink gain and ≤5 dB uplink noise figure, balancing strong output with sensitive reception.
Clean modulation under 8 dB PAPR – Achieves ≤5 % EVM when tested with a 10 MHz TDD signal at 8 dB peak-to-average ratio, suitable for linear amplification requirements.
Compact 140×75×18 mm form factor – Small footprint with mixed connector types (MCX for PA input, SMA for others), easing integration into space-constrained radio nodes.
CMOS 3.3 V TX/RX line control – Separate logic inputs for uplink (LNA) and downlink (PA) switching; high level enables the path, low level disables it, aligning with TDD frame timing.
Rugged environmental tolerance – Operational from –40 °C to +55 °C with typical current draw ≤5.5 A at nominal voltage, supporting outdoor and mobile ad-hoc installations.
Technical Specification:
Product Name:
1. UZI-TDD-1.3~1.5G-40W-14075-28V
Items: | Uplink (UL) & Downlink (UL) Specifications: |
Frequency Range: | 1. UL:1300-1500MHZ 2. DL:1300-1500MHZ |
Max Gain: | 1. UL:10±2dB 2. DL:51±2dB |
Maximum Output Power: | 1. UL:Uncontrolled 2. DL:46±1dBm |
Maximum Input Level: | 1. UL:NONE 2. DL:-2dBm |
Gain Adjustment Range: | NONE |
ALC Range: | NONE |
In-Band Ripple: | ≤2.5dB |
Noise Figure: | 1. UL:≤5dB 2. DL:NONE |
Transmit-receive switching delay: | ≤2μs |
Tx-Rx Isolation: | ≥55dBc |
EVM: | ≤5% (Peak-to-Average Power Ratio 10.0dB) |
VSWR: | ≤1.4 (Test condition: power on for testing after turning off the downlink power amplifier.) |
Operating Voltage: | 26-30V |
Operating Current: | With pre-distortion: ≤4.5A |
Working Temperature: | -40~+55℃ |
Over-Temperature Protection: | Alarm and shutdown at +85℃, resume operation at 65℃ |
Monitoring Functions: | NONE |
Transmit - receive wire control interface: | CMOS3.3V |
Connecters: | There are 3 connectors in total: PA IN: MCX connector; The remaining ones: SMA connectors |
Mechanical Dimensions: | 140*75*18 |

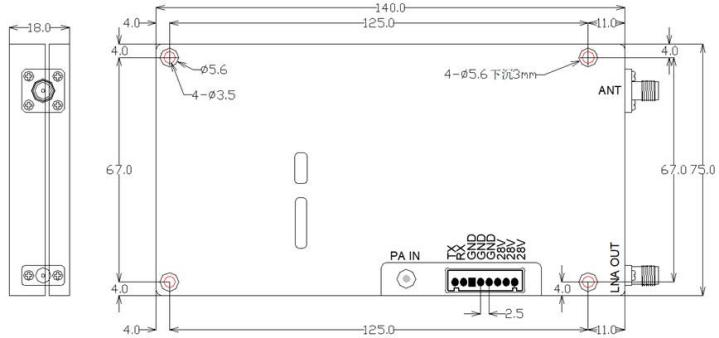

Dimensional Drawing:

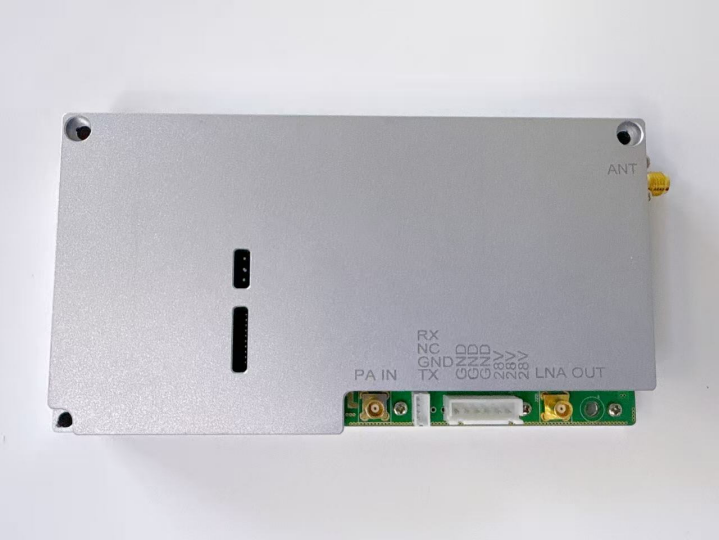

1.RX:LNA (uplink) switch, CMOS 3.3V high level turns it on, low level turns it off.
2.TX:PA (downlink) switch, CMOS 3.3V high level turns it on, low level turns it off.

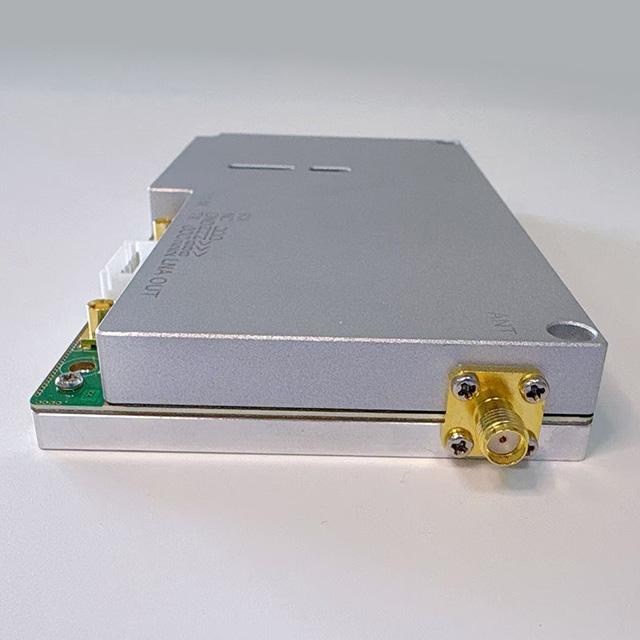

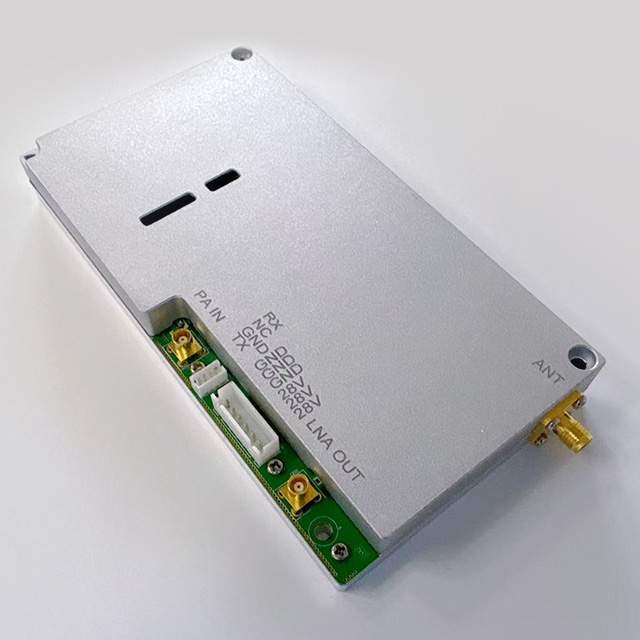

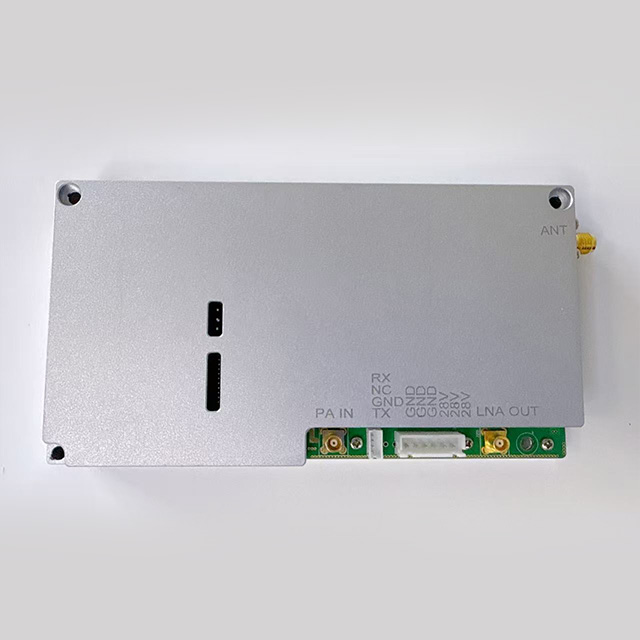

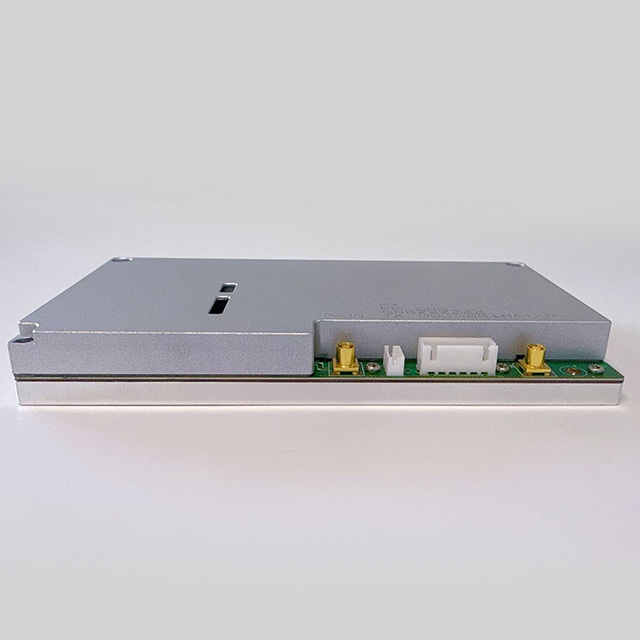

Sample:
