Features:
1. High consistency & stable performance for TDD 2.8-3.4GHz frequency bands
2.Compact 54×38×18mm form factor with low 12V/≤0.5A power consumption
3. SMA-Female I/O connectors ensuring reliable RF interface matching (VSWR ≤1.8)
4.Support CMOS 3.3V fast TX switch control (high-enable, low-disabled)
5.Flexible horizontal/vertical mounting options for diverse integration scenarios
6.CMOS 3.3V-controlled fast TX switch (high-enable, low-disable; floating = default off)
Technical Specification:
Product Name:
1. UZI-TDD-2.8~3.0G-5438-12V-TX
2. UZI-TDD-3.0~3.2G-5438-12V-TX
3. UZI-TDD-3.2~3.4G-5438-12V-TX
Note:
1. TX (Fast Switch): Enabled by CMOS 3.3V high level; disabled by low level. Defaults to disabled when left floating.
2. Mounting Method: Horizontal/vertical installation (optional)
Items: | Uplink (UL) & Downlink (UL) Specifications: |
Frequency Range: | 1. 2800-3000MHz 2. 3000-3200MHz 3. 3200-3400MHz |
Max Gain: | 12±1dB |
Maximum Output Power: | Uncontrolled |
ALC Controll | Uncontrolled |
Gain Adjustment Range: | NONE |
In-Band Ripple: | ≤2dB |
VSWR: | ≤1.8 |
Operating Voltage: | 12V |
Operating Current: | ≤0.5A |
Mechanical Dimensions: | 54*38*18 mm |
I/O Connectors: | SMA-FEMALE |
Appearance: | No obvious scratches; silk-screen printing is accurate |

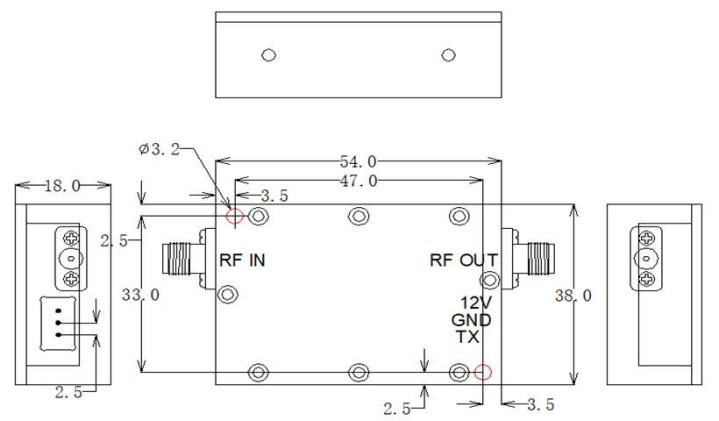

Dimensional Drawing:
CMOS 3.3V-controlled fast TX switch (high-enable, low-disable; floating = default off)

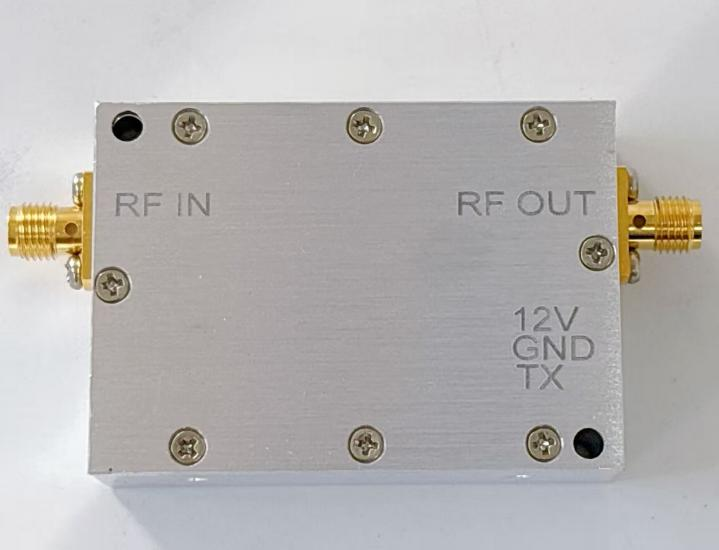

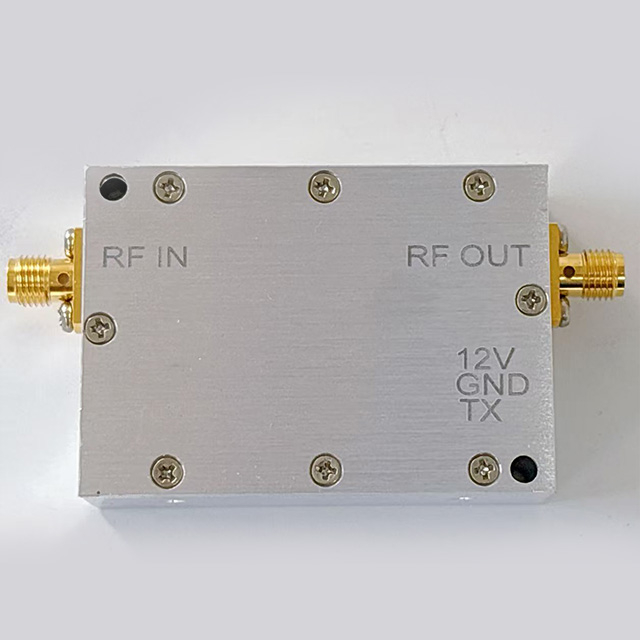

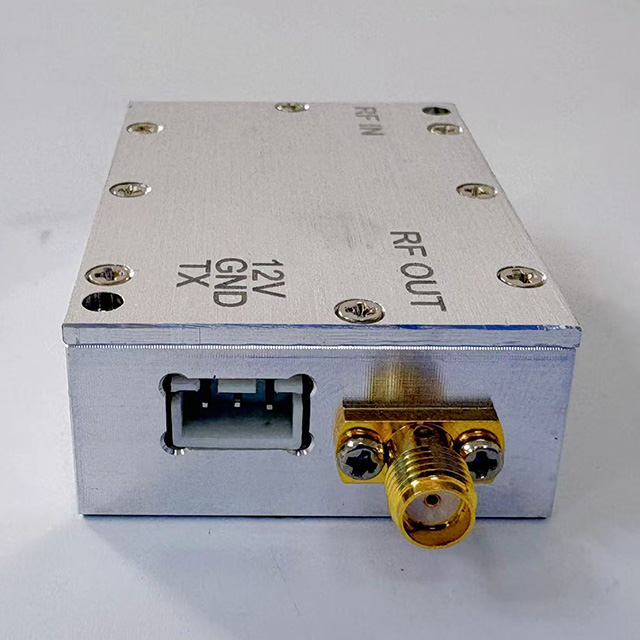

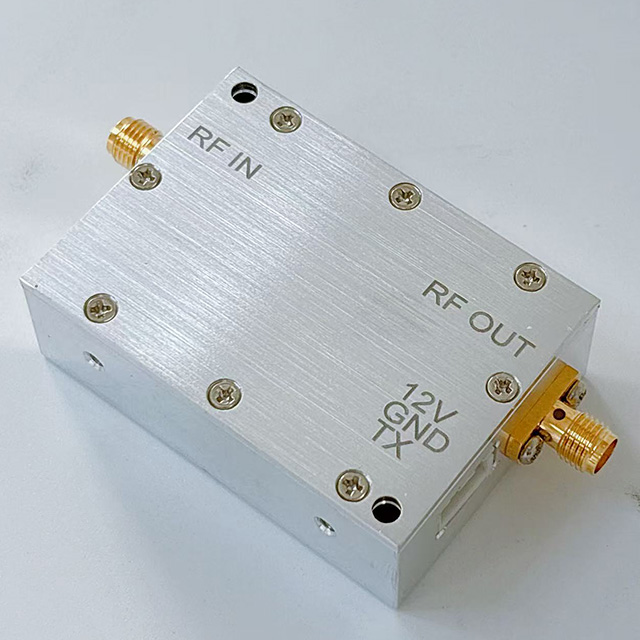

Sample:
