Features:
1. Designed for high-demand 4G infrastructure
Engineered to deliver 80W dual-channel output with exceptional linearity and thermal efficiency, supporting continuous operation in base station and repeater applications.
2. Dual-directional gain control with ALC integration
Features independent uplink and downlink gain paths, with downlink ALC range ≥10dB and gain adjustment ≥25dB for precise signal conditioning under varying input conditions.
3. Real-time system health monitoring and logging
Built-in telemetry for forward power, temperature, VSWR, and fault status, accessible via RS485 (9600 baud) for integration into remote supervision platforms.
4. Fail-safe over-power and over-temperature protection
Automatically triggers alarms and disables the amplifier when output exceeds +2dB above max rating or temperature reaches +85°C, with automatic recovery at +65°C.
5. High-isolation Tx-Rx path design
Achieves ≥55dB isolation between transmitter and receiver paths, minimizing leakage and improving system sensitivity in full-duplex FDD operation.
6. Low-noise uplink performance
Uplink noise figure ≤3dB ensures weak signal integrity, ideal for cell-edge scenarios and environments with high interference or long cable runs.
7. Wide operating temperature range for outdoor deployment
Fully functional from -40°C to +55°C, with derating and thermal management designed for solar-powered or remote telecom shelters.
8. Modular RS485 command set for integration flexibility
Supports gain setting, status query, and alarm retrieval through a simple software protocol, enabling custom control logic without additional hardware layers.
9. Compact mechanical layout with dual-wire 28V power input
Mechanical dimensions optimized for 19" chassis or pole-mount enclosures, with dual-wire 28V DC input reducing wiring complexity in field deployments.
10. Seamless frequency band customization
Available in B1 (2.1G), B3 (1.8G), B7 (2.6G), and B8 (900M) variants, allowing operators to standardize on a single hardware platform across multiple 4G bands.
Technical Specification:
Product Name:
1. UZI-FDD-B1-2.1G-80W-150100-DPSL
2. UZI-FDD-B3-1.8G-80W-150100-DPSL
3. UZI-FDD-B7-2.6G-80W-150100-DPSL
4. UZI-FDD-B8-900M-80W-150100-DPSL
Cautions:
1.4G Standard Software for Power Amplifier
2.28V Dual-Wire Power Supply Configuration
Items: | Uplink (UL) & Downlink (UL) Specifications: |
Frequency Range: | 1. B1: |
Max Gain: | 1. UL:25±2dB 2. DL:53±2dB |
Maximum Output Power: | 1. UL:Uncontrolled 2. DL:49±1dBm |
Maximum Input Level: | 1. UL:NONE 2. DL:+10dBm |
Gain Adjustment Range: | 1. UL:NONE 2. DL:≥25dB |
ALC Range: | 1. UL:NONE 2. DL:≥10dB |
Gain Flatness: | 1. UL:NONE 2. DL a. ATT10dB： ≤±1dB b. ATT20dB： ≤±1dB c. ATT25dB： ≤±1.5dB |
In-Band Ripple: | ≤2.5dB |
Noise Figure: | 1. UL:≤3dB 2. DL:NONE |
Tx-Rx Isolation: | ≥55dBc |
EVM: | ≤8% (Peak-to-Average Power Ratio 10.0dB) |
VSWR: | 1. UL:≤1.4 (Test condition: power on for testing after turning off the uplink power amplifier.) 2. UL:≤1.4 (Test condition: power on for testing after turning off the downlink power amplifier.) |
Operating Voltage: | 28V DC, dual-wire power supply configuration |
Operating Current: | With APD: ≤9A |
Operating Current: | With APD: ≤9A |
Baud Rate: | 9600 |
Working Temperature: | -40~+55℃ |
Over-Temperature Protection: | Alarm and shutdown at +85℃, resume operation at 65℃ |
Monitoring Functions: | 1. For the wiring diagram of the monitoring port, refer to the outline dimension drawing; RS485 interface communication a. Settings: switch, gain; b. Query: module status (including power amplifier status, over-power alarm, over-temperature alarm), power amplifier temperature, power amplifier ATT value, detected forward power; c. Over-power alarm: alarm when the power exceeds the maximum output power by +2dB; d. Over-temperature alarm: recommended threshold is +85℃; alarm is triggered when the detected temperature exceeds +85℃, and the power amplifier is turned off simultaneously, then turned on at +65℃; e. Power amplifier temperature detection: the detection range shall include but not be limited to -25℃~+85℃, with a detection accuracy of ±3℃; f. Forward power detection: the detection range shall be greater than 20dB, with a detection accuracy of less than ±1dB; |

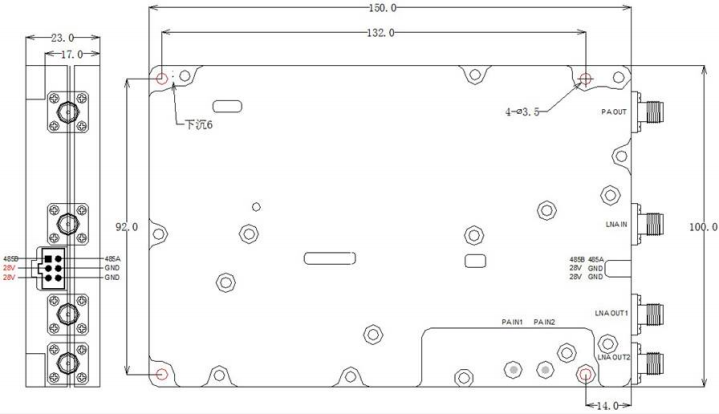

Dimensional Drawing:

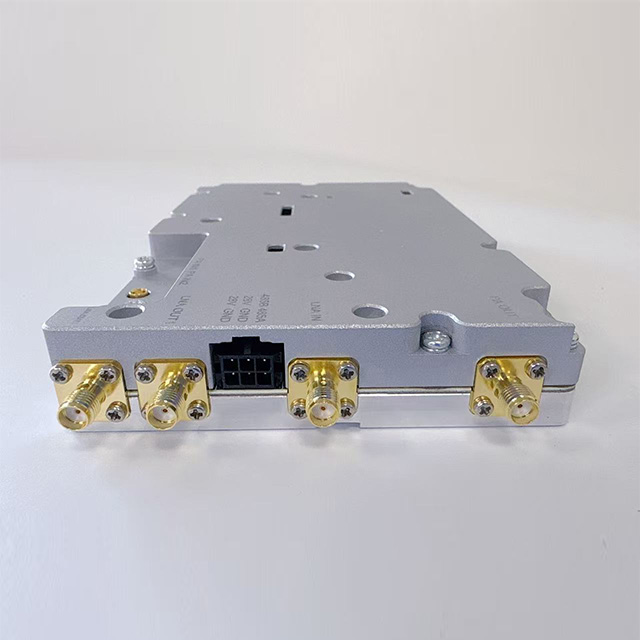

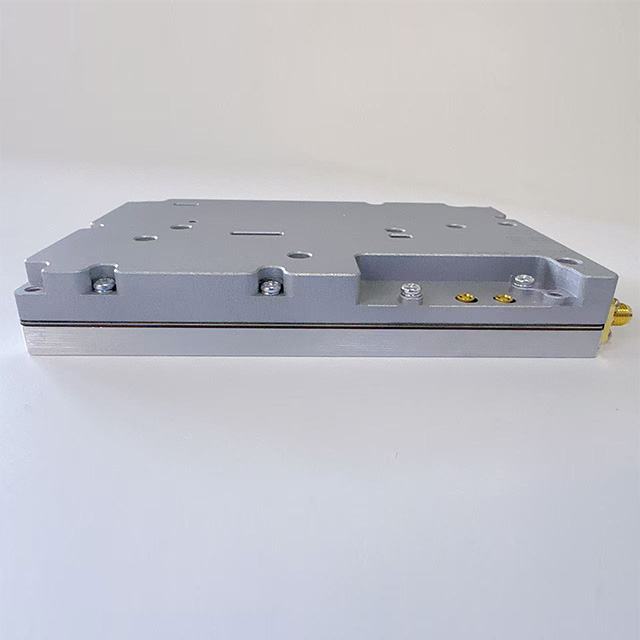

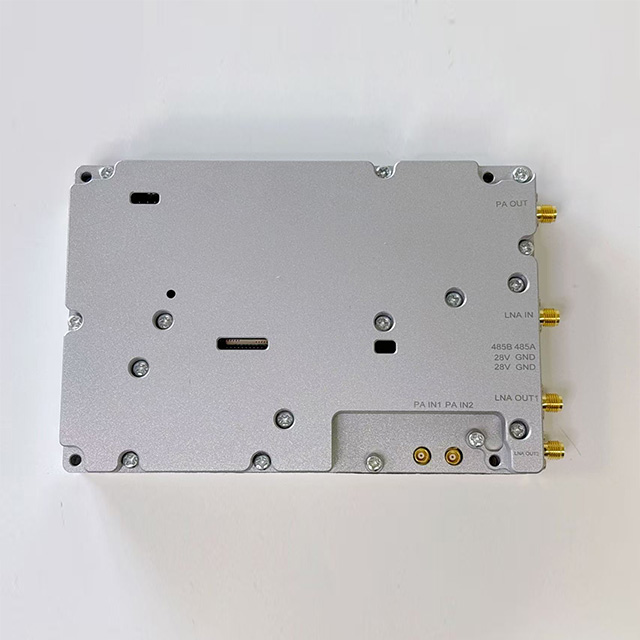

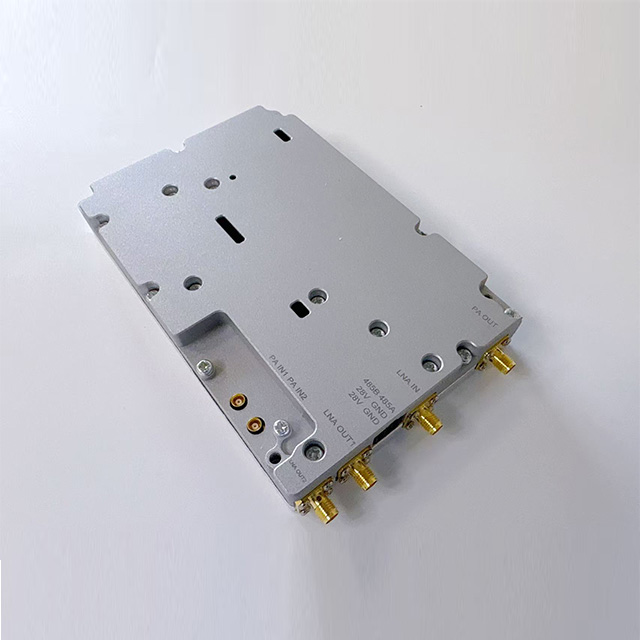

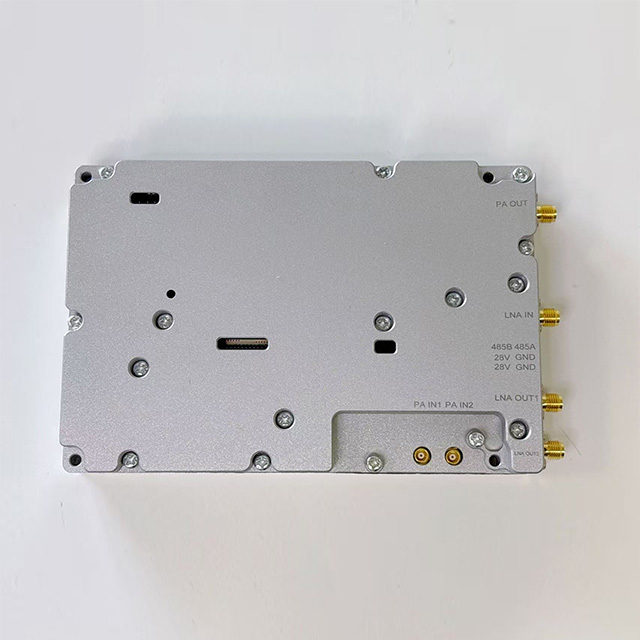

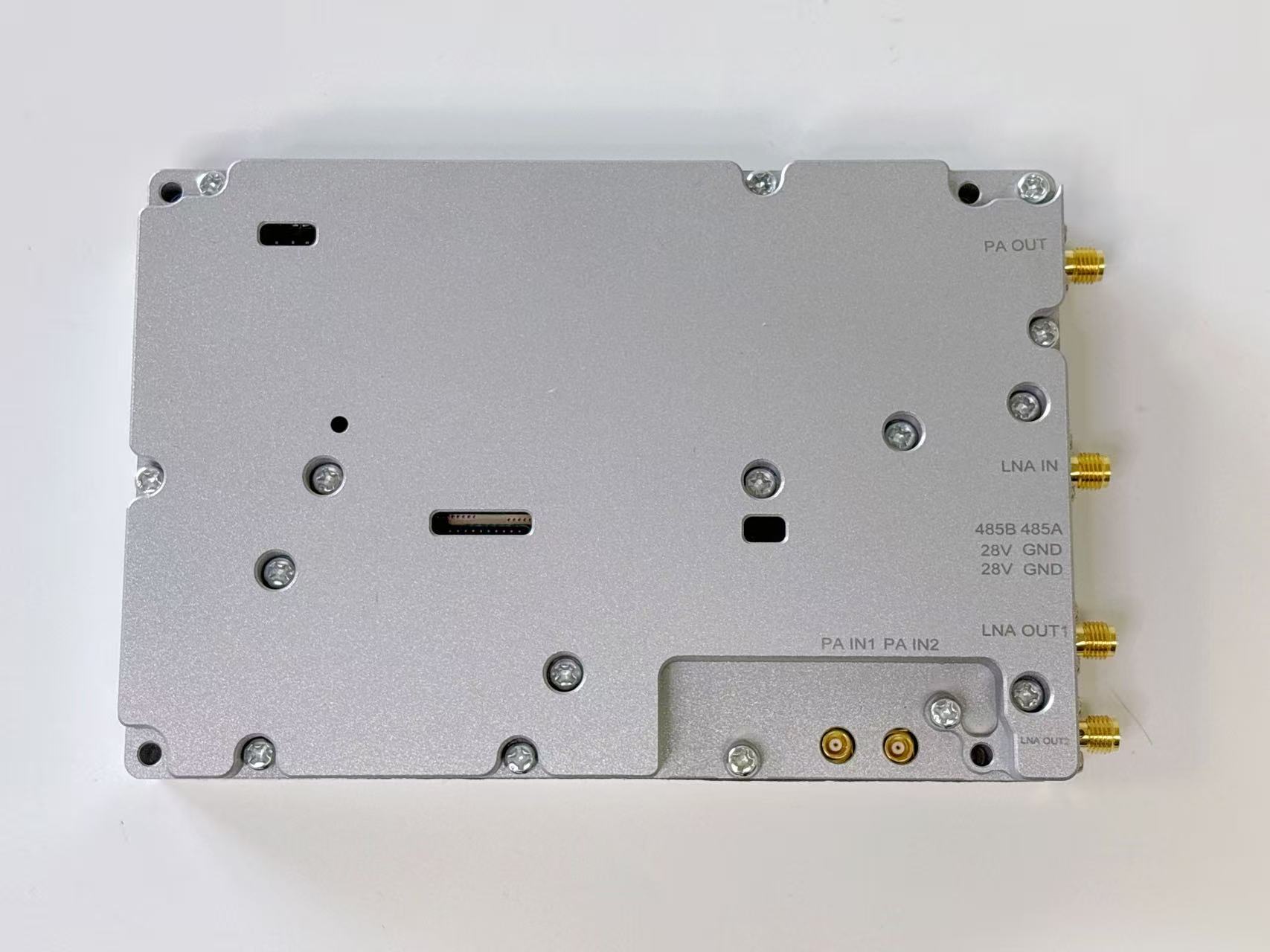

Sample:
