Features:
GaN-Based 50W TDD Amplifier for 3.4GHz Band – Delivers 47±1dBm downlink output across 3200–3400MHz with 53±2dB gain, purpose-built for ad-hoc network deployments requiring high-power density in mid-band spectrum.
Ultra-Low Latency for Tactical Communications – Achieves ≤2μs signal transmission delay, meeting stringent timing requirements for real-time ad-hoc, mesh, and tactical radio applications.
Uplink with Integrated Interference Rejection – Embedded uplink filtering suppresses out-of-band interference and reduces spectral congestion, improving signal quality in dense RF environments.
High Efficiency with GaN Technology – Powered by 48V with only 4A current draw, delivering 50W output with exceptional power-added efficiency and minimal heat dissipation.
Hardware-Only Thermal Protection – Fixed-threshold over-temperature shutdown at +85°C with automatic restart at 65°C, ensuring failsafe operation without software or external controller dependency.
No Monitoring – Simplified Architecture – Deliberately omits RS485 monitoring to reduce system complexity, eliminate potential failure points, and lower unit cost for high-volume ad-hoc deployments.
Robust Environmental Tolerance – Operates reliably from -40°C to +55°C ambient, supporting deployment in extreme outdoor and field conditions without performance degradation.
CMOS 3.3V TDD Frame Synchronization – Independent logic inputs for TX/PA and RX/LNA switching (high=enable, low=disable) provide precise alignment with TDD slot timing, eliminating external RF switching components.
Compact GaN-Optimized Chassis – Housed in 170×110×22mm enclosure with MCX (PA IN/LNA OUT) and SMA (ANT) connectors, enabling easy integration into portable transceivers and compact radio nodes.
Clean RF Performance for Ad-Hoc Applications – Maintains ≤5% EVM at 8dB PAPR and ≤2.5dB in-band ripple, ensuring reliable modulation quality for OFDM and QAM waveforms in challenging field environments.
Technical Specification:
Product Name:
1. UZI-TDD-3.2~3.4G-50W-170110-48VGaN
Cautions:
1. For ad-hoc network use; tested with a Peak-to-Average Power Ratio (PAPR) of 8dB
2. Uplink with added filtering
3. Supply voltage: 48V
4. Monitoring function: None
5. Over-temperature protection: Controlled by hardware _ over-temperature shutdown at +85℃, restart at +65℃
Items: | Uplink (UL) & Downlink (UL) Specifications: |
Frequency Range: | 1. UL:3200MHz -3400MHz 2. DL:3200MHz -3400MHz |
Max Gain: | 1. UL:10±2dB 2. DL:53±2dB |
Maximum Output Power: | 1. UL:Uncontrolled 2. DL:47±1dBm |
Maximum Input Level: | 1. UL:NONE 2. DL:-5dBm |
Gain Adjustment Range: | 1. UL:NONE 2. DL:NONE |
ALC Range: | 1. UL:NONE 2. DL:NONE |
In-Band Ripple: | ≤2.5dB |
Noise Figure: | 1. UL:≤4dB 2. DL:NONE |
Transmissions Delay: | ≤2us |
EVM: | ≤5% (Peak-to-Average Power Ratio 8.0dB) |
VSWR: | ≤1.4 (Test condition: power on for testing after turning off the downlink power amplifier.) |
Operating Voltage: | 48V |
Operating Current: | 4A |
Working Temperature: | -40~+55℃ |
Over-Temperature Protection: | Alarm and shutdown at +85℃, resume operation at 65℃ |
Monitoring Functions: | None |
Connectors: | 3 connectors in total: ANT (SMA connector); PA_IN/LNA_OUT (MCX connector) |
Transmit-Receive Wire Control Interface: | CMOS 3.3V |
Chassis Dimensions: | 170*110*22 |

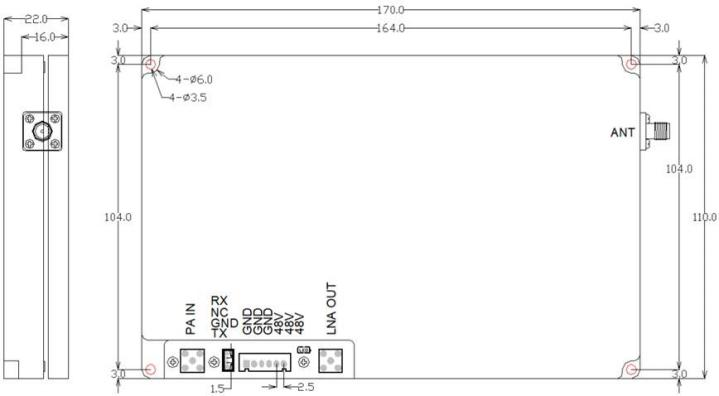

Dimensional Drawing:

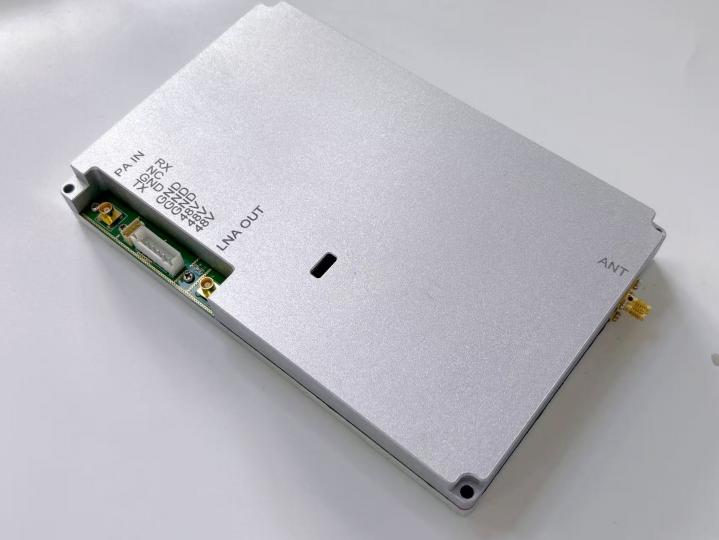

1.RX:LNA (uplink) switch, CMOS 3.3V high level turns it on, low level turns it off.
2.TX:PA (downlink) switch, CMOS 3.3V high level turns it on, low level turns it off.

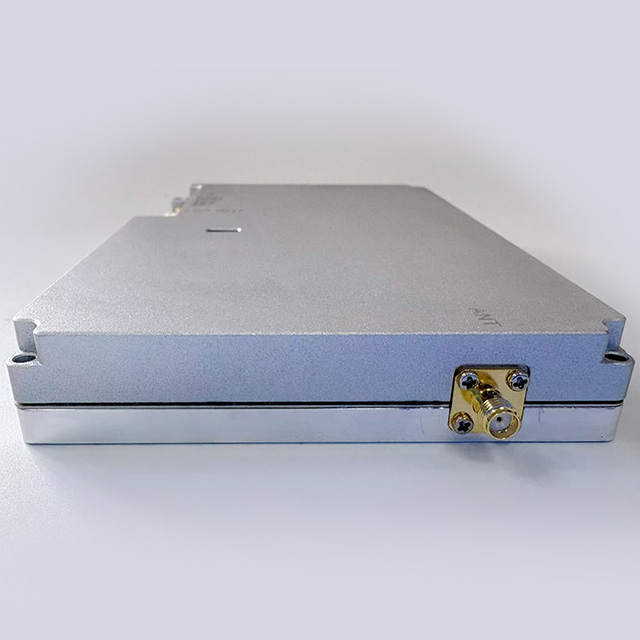

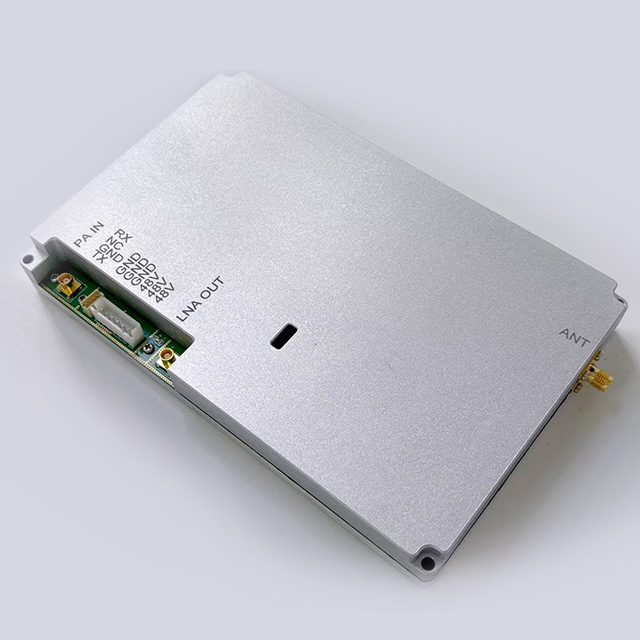

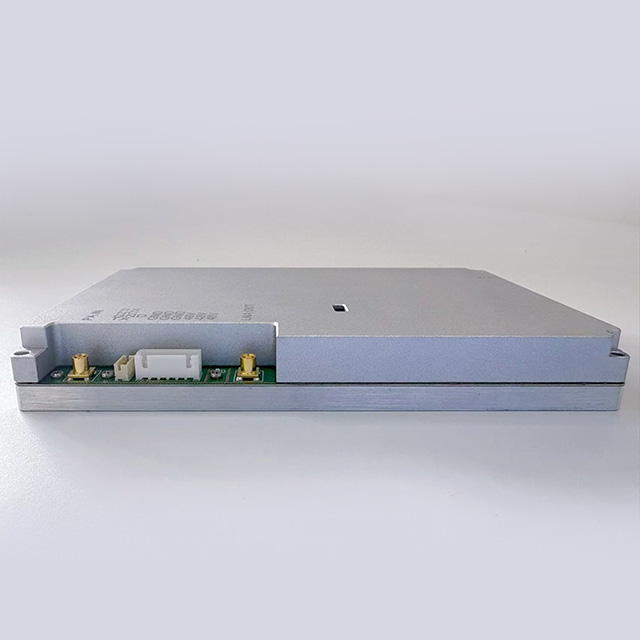

Sample:
