Features:
Single-Hardware Multi-Band Coverage – One unified PA module supports five FDD bands (B1/B3/B5/B7/B8) from 800MHz to 2.6GHz, simplifying inventory management and accelerating multi-frequency field deployments.
Optimized GaN Energy Efficiency – Leverages advanced Gallium Nitride (GaN) technology to operate at just 3.5A (48V), drastically cutting heat generation and power supply costs compared to traditional LDMOS modules, especially in high-density 50W deployments.
Superior Signal Fidelity & Consistency – Ensures exceptionally clean transmission with ≤5% EVM (at 10.0dB PAR), while maintaining a low ≤2dB in-band ripple across both UL and DL paths to guarantee stable modulation quality across the entire operating spectrum.
Balanced High-Gain Architecture – Features 53±2dB downlink gain and 25±2dB uplink gain with a low ≤3dB noise figure, delivering powerful output while preserving sensitive receiver performance.
Comprehensive RS485 Remote Supervision – Full-duplex 19200 baud telemetry allows real-time remote adjustment of gain and ATT values, plus instant queries on forward power (accuracy ±1dB) and temperature (accuracy ±3℃) via standard module-testing software.
Intelligent Self-Protection Mechanism – Automatic dual-threshold defense: immediate active fault reporting triggers an alarm if forward power exceeds the limit by +2dB; hardware-based thermal shutdown at 85°C with auto-recovery at 65°C ensures failsafe operation.
Flexible Downlink Conditioning – Integrated digital ATT provides a gain adjustment range of ≥25dB, coupled with an ALC range of ≥10dB to stabilize output power against input signal fluctuations, with flatness controlled within ±1.5dB.
Space-Saving Compact Footprint – Ultra-slim 150×100×23mm mechanical design allows seamless retrofitting into space-constrained RRU housings or pole-mounted enclosures without compromising thermal performance.
Versatile Multi-Interface Connectivity – Hybrid connector configuration (MCX for PA IN, SMA for LNA IN/PA OUT/LNA OUT) provides flexible RF routing options, simplifying PCB layout and cable harness assembly during system integration.
Rapid Out-of-the-Box Deployment – Ships with PC-based testing software to quickly validate critical parameters (gain flatness, alarm thresholds, and forward power detection) during factory acceptance or on-site commissioning.
Technical Specification:
Product Name:
1. UZI-FDD-B1-2.1G-50W-1510-48VGaN
2. UZI-FDD-B3-1.8G-50W-1510-48VGaN
3. UZI-FDD-B5-800M-50W-1510-48VGaN
4. UZI-FDD-B7-2.6G-50W-1510-48VGaN
5. UZI-FDD-B8-900M-50W-1510-48VGaN
Cautions:
1. Gallium nitride, 48V dual-line power supply
Items: | Uplink (UL) & Downlink (UL) Specifications: |
Frequency Range: | 1. B1: a. UL:1920-1980MHz b. DL:2110-2170MHz 2. B3 a. UL:1710-1785MHz b. DL:1805-1880MHz 3. B5 a. UL:824-849MHz b. DL:869-894MHz 4. B7 a. UL:2500-2570MHz b. DL:2620-2690MHz 5. B8 a. UL:880-915MHz b. DL:925-960MHz |
Max Gain: | 1. UL:25±2dB 2. DL:53±2dB |
Maximum Output Power: | 1. UL:Uncontrolled 2. DL:44±1dBm |
Maximum Input Level: | 1. UL:NONE 2. DL:+10dBm |
Gain Adjustment Range: | 1. UL:NONE 2. DL:≥25dB |
ALC Range: | 1. UL:NONE 2. DL:≥10dB |
Gain Flatness: | 1. UL:NONE 2. DL a. ATT10dB： ≤±1dB b. ATT20dB： ≤±1dB c. ATT25dB： ≤±1.5dB |
In-Band Ripple: | 1. UL:≤2dB 2. DL:≤2dB |
Noise Figure: | 1. UL:≤3dB 2. DL:NONE |
EVM: | ≤5% (Peak-to-Average Power Ratio 10.0dB) |
VSWR: | 1. ≤1.4 (Test condition: power on for testing after turning off the uplink power amplifier.) 2. ≤1.4 (Test condition: power on for testing after turning off the downlink power amplifier.) |
Operating Voltage: | 48V |
Operating Current: | ≤3.5A |
Baud Rate: | 19200 |
Working Temperature: | -40~+55℃ |
Over-Temperature Protection: | Alarm and shutdown at +85℃, resume operation at 65℃ |
Monitoring Functions: | 1. For the wiring diagram of the monitoring port, refer to the outline dimension drawing; RS485 interface communication a. Settings: switch, gain; b. Query: module status (including power amplifier status, over-power alarm, over-temperature alarm), power amplifier temperature, power amplifier ATT value, detected forward power; c. Over-power alarm: alarm when the power exceeds the maximum output power by +2dB; d. Over-temperature alarm: recommended threshold is +85℃; alarm is triggered when the detected temperature exceeds +85℃, and the power amplifier is turned off simultaneously, then turned on at +65℃; e. Power amplifier temperature detection: the detection range shall include but not be limited to -25℃~+85℃, with a detection accuracy of ±3℃; f. Forward power detection: the detection range shall be greater than 20dB, with a detection accuracy of less than ±1dB; |
Connecters: | 4 connectors: PA IN is an MCX connector, and the rest are SMA connectors. |
Mechanical dimensions: | 150*100*23 |

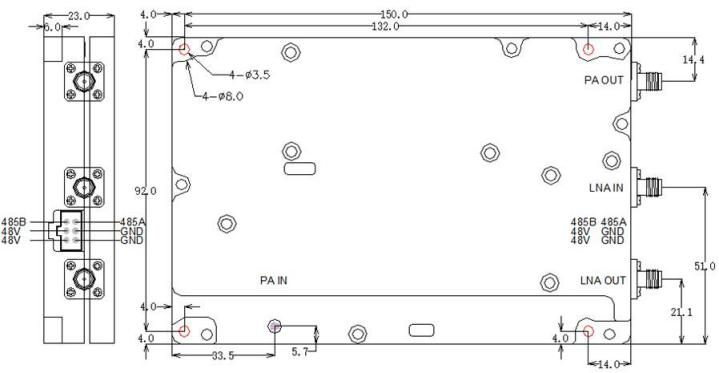

Dimensional Drawing:

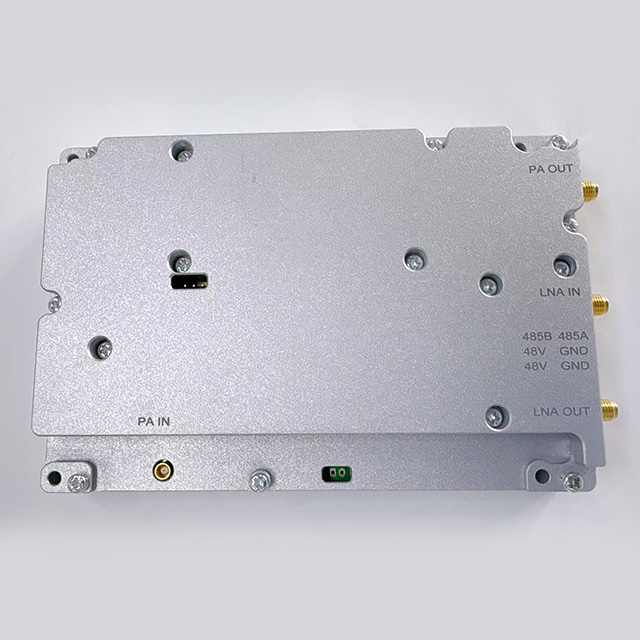

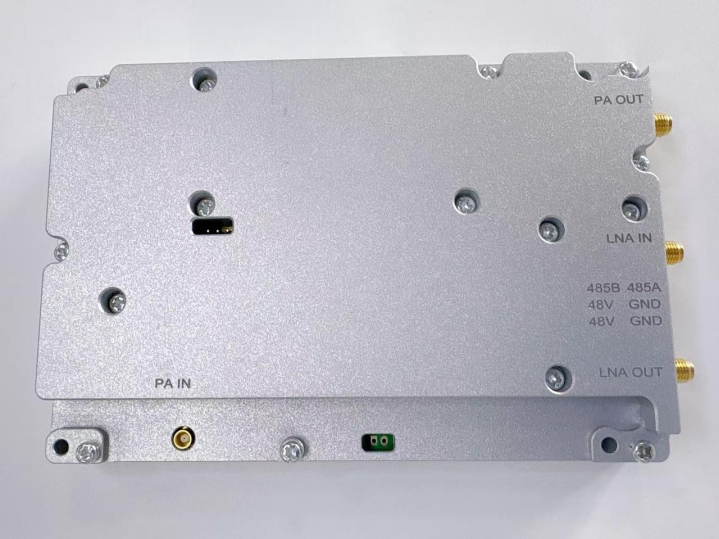

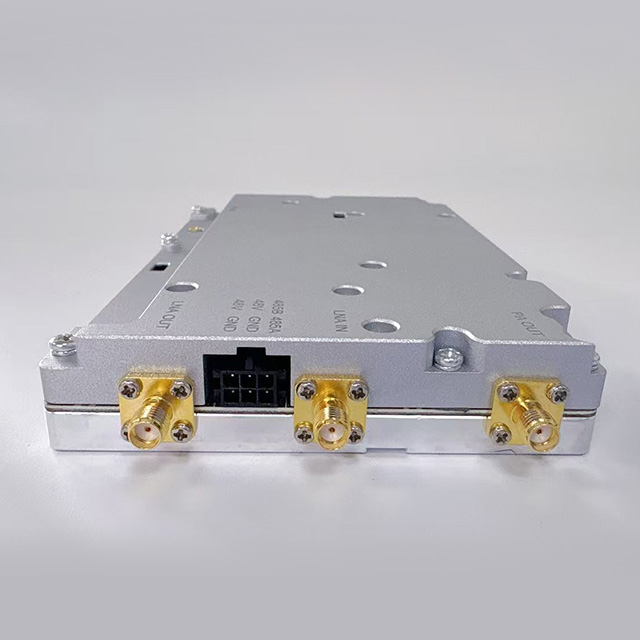

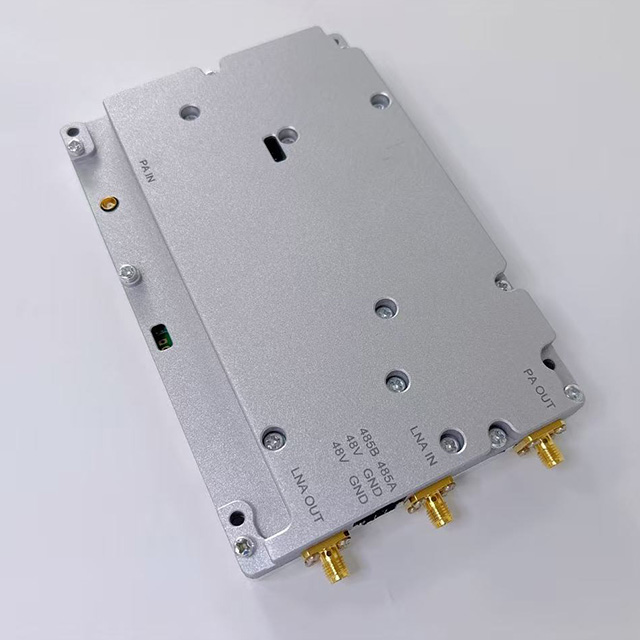

Sample:
