Features:
Dual-band ad-hoc network coverage – Supports two precise band options (2.8–3.0GHz and 3.0–3.2GHz), tailored for flexible deployment in mesh and ad-hoc communication systems.
High-gain 20W TDD output – Delivers 43±1dBm downlink power with 53±2dB gain and ≤5% EVM at 8dB PAPR (10MHz bandwidth), ensuring robust signal integrity.
48V GaN efficient power stage – Achieves high energy conversion efficiency with ≤2.5A operating current, plus over-temperature (85°C shutdown / 65°C resume) and over-power protection.
RS485 full telemetry interface – Provides 19200 baud communication for real-time queries of forward power (±1dB accuracy), temperature (±3°C), alarm status, and remote gain/switching control.
Compact chassis with CMOS frame control – Housed in 140×110×22mm enclosure with MCX (PA IN) and SMA (LNA OUT / ANT) connectors, plus separate 3.3V logic inputs for TX/PA and RX/LNA TDD switching.
Technical Specification:
Product Name:
1. UZI-TDD-2.8~3.0G-20W-1411-48VGaN
2. UZI-TDD-3.0~3.2G-20W-1411-48VGaN
Items: | Uplink (UL) & Downlink (UL) Specifications: |
Frequency Range: | 1. 2.8-3.0G a. UL:2800MHz -3000MHz b. DL:2800MHz -3000MHz 2. 3.2-3.4G a. UL:3000MHz -3200MHz b. DL:3000MHz -3200MHz |
GMax Gain: | 1. UL:10±2dB 2. DL:53±2dB |
Maximum Output Power: | 1. UL:Uncontrolled 2. DL:43±1dBm |
Maximum Input Level: | 1. UL:NONE 2. DL:+10dBm |
Gain Adjustment Range: | 1. UL:NONE 2. DL:≥25dB |
ALC Range: | 1. UL:NONE 2. DL:≥10dB |
Gain Adjustment Error: | 1. UL:NONE 2. DL a. 0~20dB： ≤±1dB b. 20~25dB： ≤±1.5dB |
In-Band Ripple: | ≤3dB |
Noise Figure: | 1. UL:≤4dB 2. DL:NONE |
Tx-Rx Isolation: | ≥55dBc |
EVM: | ≤5% (Peak-to-Average Power Ratio 8.0dB) |
VSWR: | ≤1.4 (Test condition: power on for testing after turning off the downlink power amplifier.) |
Operating Voltage: | 48V |
Operating Current: | With pre-distortion: ≤2.5A |
Baud Rate: | 19200 |
Working Temperature: | -40~+55℃ |
Over-Temperature Protection: | Alarm and shutdown at +85℃, resume operation at 65℃ |
Monitoring Functions: | 1. For the wiring diagram of the monitoring port, refer to the outline dimension drawing; RS485 interface communication a. Settings: switch, gain; b. Query: module status (including power amplifier status, over-power alarm, over-temperature alarm), power amplifier temperature, power amplifier ATT value, detected forward power; c. Over-power alarm: alarm when the power exceeds the maximum output power by +2dB; d. Over-temperature alarm: recommended threshold is +85℃; alarm is triggered when the detected temperature exceeds +85℃, and the power amplifier is turned off simultaneously, then turned on at +65℃; e. Power amplifier temperature detection: the detection range shall include but not be limited to -25℃~+85℃, with a detection accuracy of ±3℃; f. Forward power detection: the detection range shall be greater than 20dB, with a detection accuracy of less than ±1dB; |
Dimensions: | 140*110*22 |
Connectors | 3 connectors in total: PA IN adopts MCX connector, while both LNA OUT and ANT use SMA connectors. |
Transmit-Receive Wired Control Interface: | CMOS 3.3V |

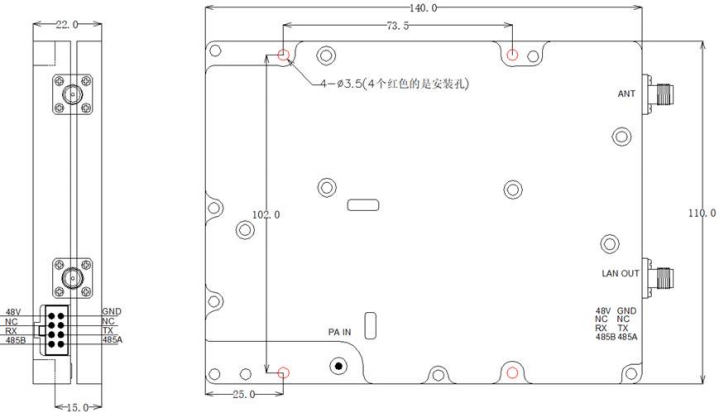

Dimensional Drawing:
1.RX:LNA (uplink) switch, CMOS 3.3V high level turns it on, low level turns it off.
2.TX:PA (downlink) switch, CMOS 3.3V high level turns it on, low level turns it off.

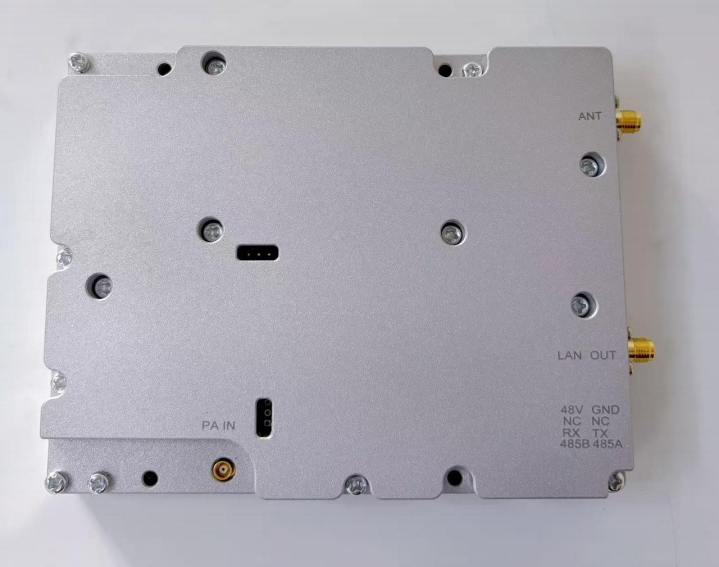

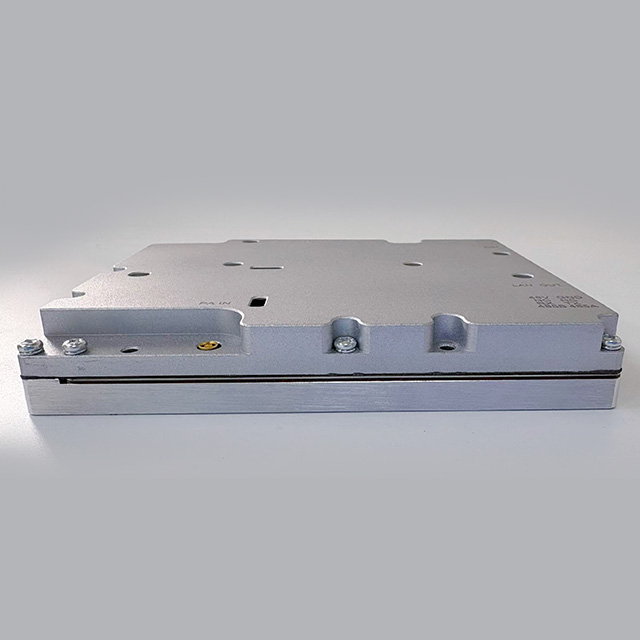

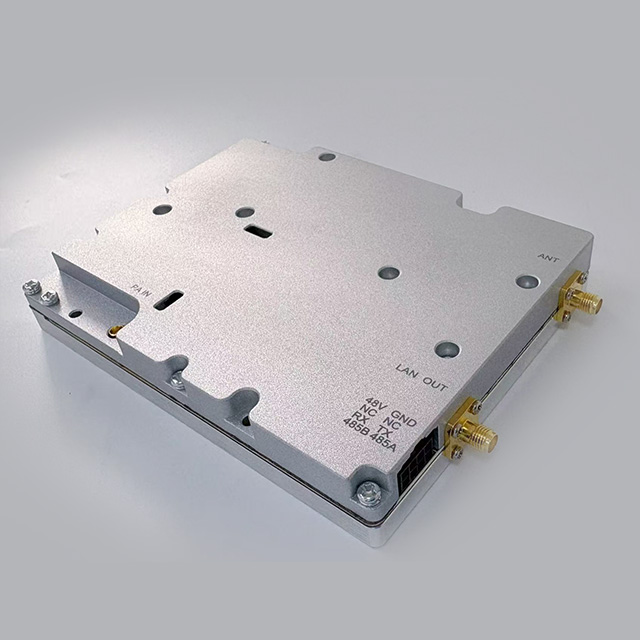

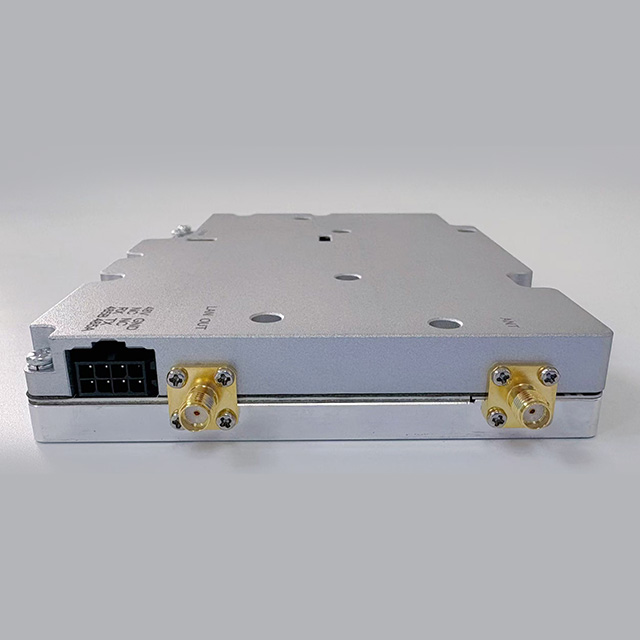

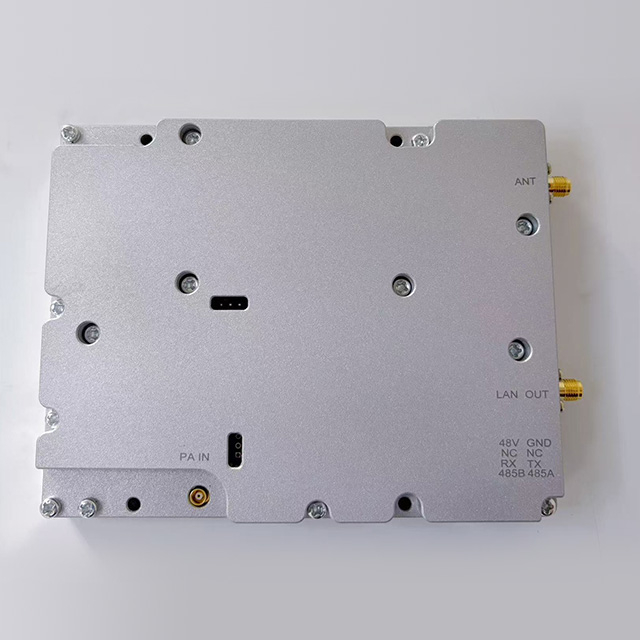

Sample:
