Features:
Sub-1GHz Long-Range TDD Amplifier – Operates across 260–360MHz with superior propagation characteristics, delivering 40±1dBm (10W) output for extended-range ad-hoc and tactical communication networks.
Exceptional Propagation for Non-Line-of-Sight – Leverages VHF/UHF low-band frequencies to penetrate foliage, buildings, and terrain obstacles, significantly outperforming higher-frequency solutions in rural and urban canyon environments.
Uplink with Integrated Interference Rejection – Embedded filtering on the receive path suppresses out-of-band interference, improving receiver selectivity in congested spectral environments.
Balanced Gain Architecture for Low-Band – Provides 45±2dB downlink gain and 10±2dB uplink gain with ≤3dB noise figure, optimized for long cable runs and distributed antenna systems.
Hardware-Only Thermal Protection – Fixed-threshold over-temperature shutdown at +85°C with automatic restart at 65°C, ensuring fail-safe operation without software or external controller dependency.
No Monitoring – Maximum Simplicity – Deliberately omits RS485 monitoring to reduce system complexity, eliminate potential failure points, and minimize unit cost for high-volume ad-hoc deployments.
Fixed-Gain Architecture for Predictable Performance – No gain adjustment or ALC circuitry, ensuring consistent, predictable RF performance without risk of misconfiguration in field deployments.
Wide Environmental Tolerance – Operates reliably from -40°C to +55°C ambient, supporting deployment in extreme outdoor and field conditions without performance degradation.
Ultra-Compact Low-Power Chassis – Housed in industry-leading 110×70×18mm enclosure with ≤3.2A current draw at 28V, ideal for man-portable radios, UAV payloads, and space-constrained nodes.
CMOS 3.3V TDD Frame Synchronization – Independent logic inputs for TX/PA and RX/LNA switching (high=enable, low=disable) provide precise alignment with TDD slot timing; MCX (PA IN/LNA OUT) and SMA (ANT) connectors simplify integration.
Technical Specification:
Product Name:
1. UZI-TDD-260M~360M-10W-117-28V
Cautions:
1. TDD 10M signal; tested with a Peak-to-Average Power Ratio (PAPR) of 8dB
2. For ad-hoc network use
3. Uplink with added filtering
4. Over-temperature protection: Controlled by hardware with fixed thresholds _ over- temperature shutdown at +85℃, restart at 65℃ .
Items: | Uplink (UL) & Downlink (UL) Specifications: |
Frequency Range: | 1. UL:260MHz -360MHz 2. DL:260MHz -360MHz |
Max Gain: | 1. UL:10±2dB 2. DL:45±2dB |
Maximum Output Power: | 1. UL:Uncontrolled 2. DL:40±1dBm |
Maximum Input Level: | 1. UL:NONE 2. DL:-4dBm |
Gain Adjustment Range: | 1. UL:NONE 2. DL:NONE |
ALC Range: | 1. UL:NONE 2. DL:Uncontrolled |
In-Band Ripple: | ≤4dB |
Noise Figure: | 1. UL:≤3dB 2. DL:NONE |
Tx-Rx Isolation: | ≥55dBc |
EVM: | ≤5% (Peak-to-Average Power Ratio 8.0dB) |
VSWR: | ≤1.4 (Test condition: power on for testing after turning off the uplink power amplifier.) |
Operating Voltage: | 28V |
Operating Current: | ≤3.2A |
Working Temperature: | -40~+55℃ |
Over-Temperature Protection: | Alarm and shutdown at +85℃, resume operation at 65℃ |
Monitoring Functions: | NONE |
Transmit-Receive Wire Control Interface: | CMOS 3.3V |
Connectors: | 3 connectors in total: PAIN/LNA OUT (MCX connector); ANT (SMA connector) |
Mechanical Dimensions: | 110*70*18 |

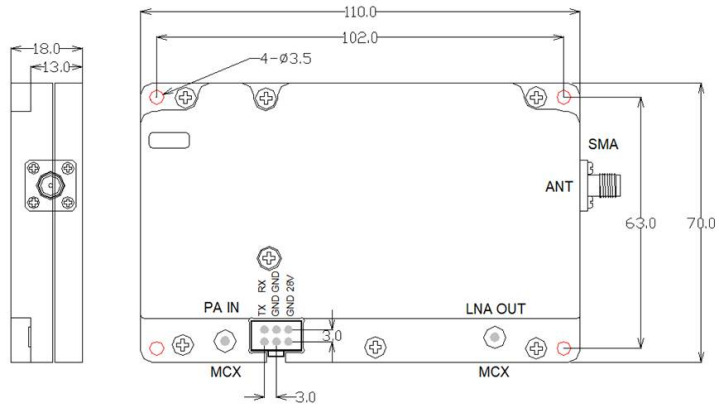

Dimensional Drawing:

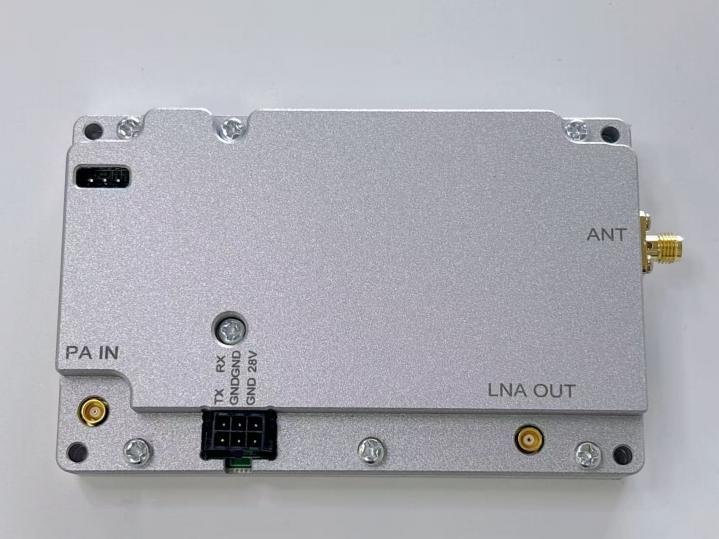

1.RX:LNA (uplink) switch, CMOS 3.3V high level turns it on, low level turns it off.
2.TX:PA (downlink) switch, CMOS 3.3V high level turns it on, low level turns it off.

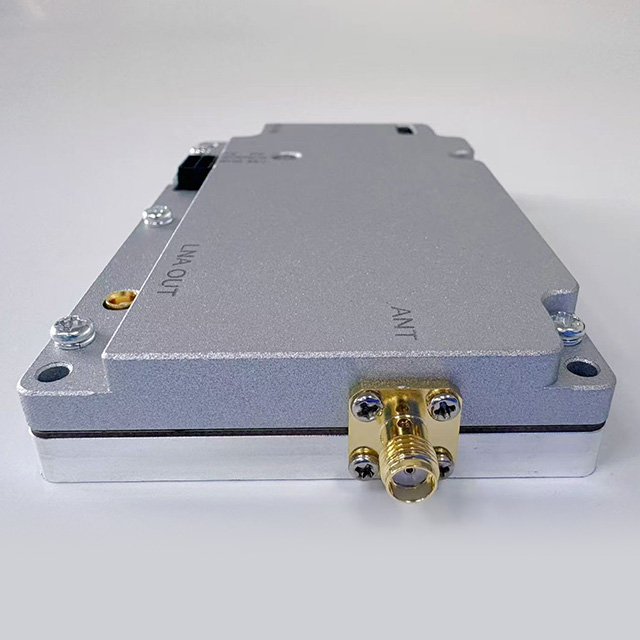

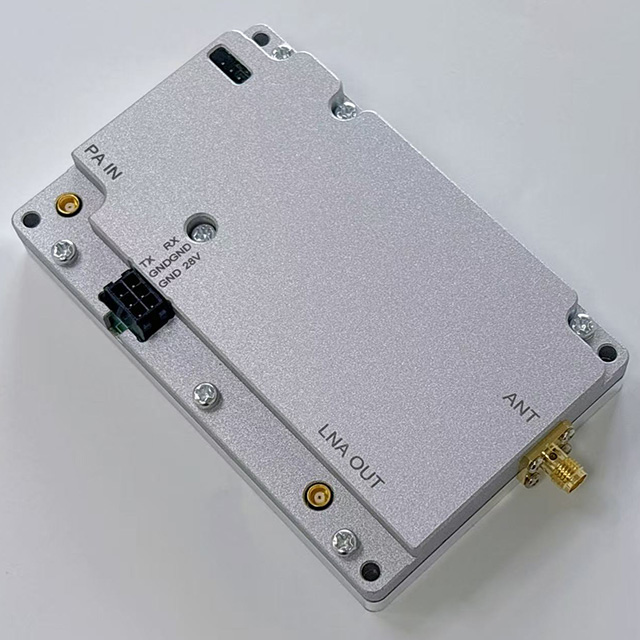

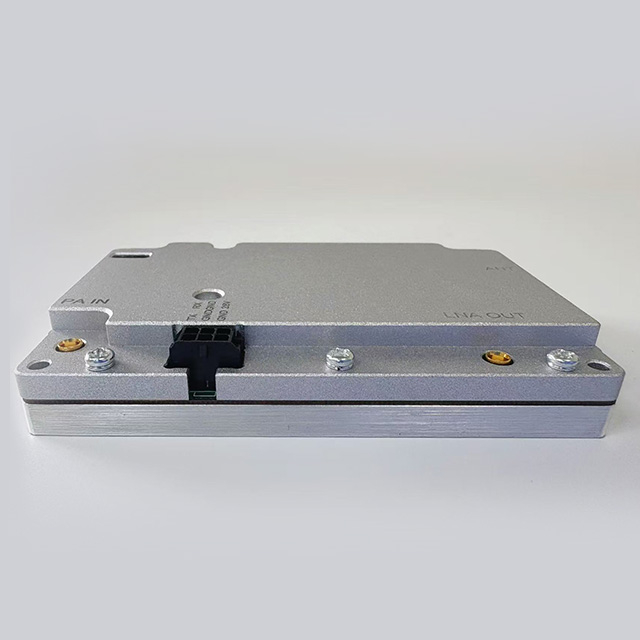

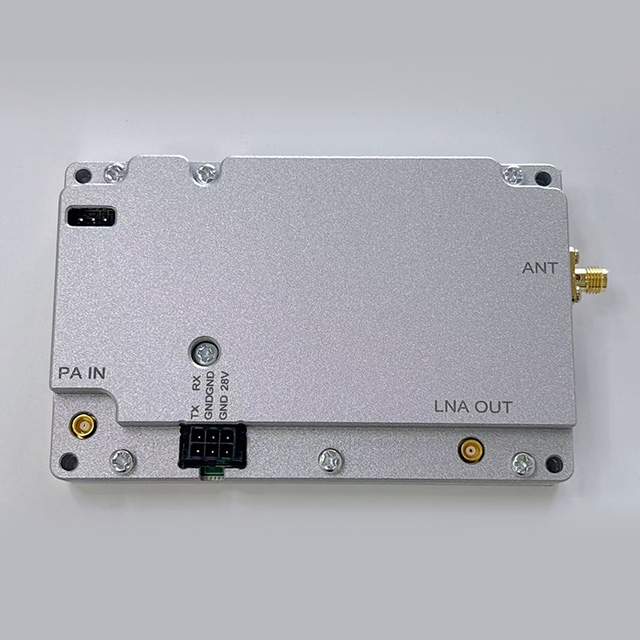

Sample:
