Features:
1. High reliability, stability and consistency ensure long-term stable operation of the equipment.
2. Compact size (120×55×21.5) and low power consumption (operating current ≤1.2A@28V), suitable for space-constrained scenarios.
3. Wide frequency range coverage, supporting multiple frequency bands including B1/B3/B5/B8 to meet different communication requirements.
Technical Specification:
Product Name:
1. UZI-FDD-B1-2.1G-2W-12055R-DualL-DI-28V
2. UZI-FDD-B3-1.8G-2W-12055R-Dual-DI-28V
3. UZI-FDD-B5-800M-2W-12055R-Dual-DI-28V
4. UZI-FDD-B8-900M-2W-12055R-Dual-DI-28V
Cautions:
1. Note: The power amplifier switch (ON/OFF) function is cancelled, and the silkscreen is changed to NC. The power amplifier turns on directly when powered on.
2.The power amplifier has a total of 5 connectors, among which the ANT is an SMA connector, and the remaining ones are MMCX connectors.
Items: | Uplink (UL) & Downlink (DL)Specifications: |
Frequency Range: | 1. B1: a. UL:1920-1980MHz b. DL:2110-2170MHz 2. B3 a. UL:1710-1785MHz b. DL:1805-1880MHz 3. B5 a. UL:824-849MHz b. DL:869-894MHz 4. B8 a. UL:880-915MHz b. DL:925-960MHz |
Max Gain: | 1. UL:18±2dB 2. DL:40±2dB |
Maximum Output Power: | 1. UL:Uncontrolled 2. DL:33±1dBm |
Maximum Input Level: | 1. DL:-7dBm |
Gain Adjustment Range: | NONE |
ALC Range: | NONE |
In-Band Ripple: | 1. UL:≤3dB 2. DL:≤3dB |
Noise Figure: | 1. UL:≤5dB |
EVM: | EVM ≤3% (Peak-to-Average Power Ratio 10.0dB) |
VSWR: | 1. UL:≤1.4:1 (test with power on; before powering on, check whether the test port is uplink) 2. DL:≤1.4:1 (test with power on; before powering on, check whether the test port is downlink) |
Operating Voltage: | 28V |
Operating Current: | ≤1.2A |
Working Temperature: | -25~65℃ |
Monitoring Functions: | None |
Connections: | 5 connectors in total; ANT is SMA connector, others are MMCX connectors |
Amplifier Dimensions: | 120*55*21.5 |
Label： | Inspect the label according to the outline dimension drawing |

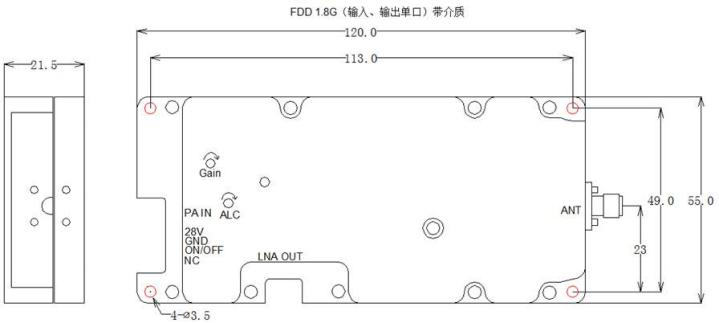

Dimensional Drawing:

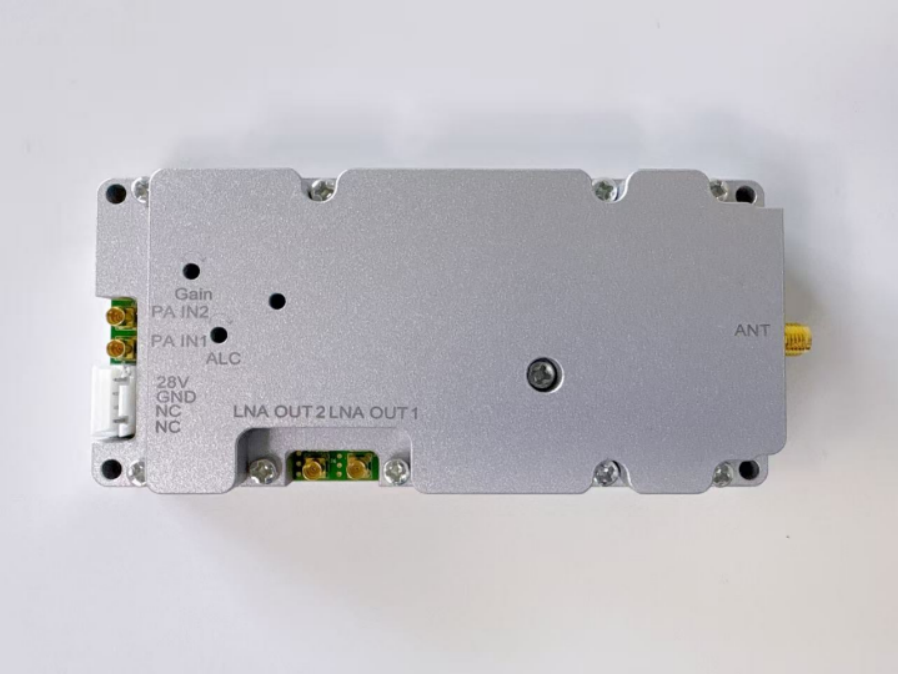

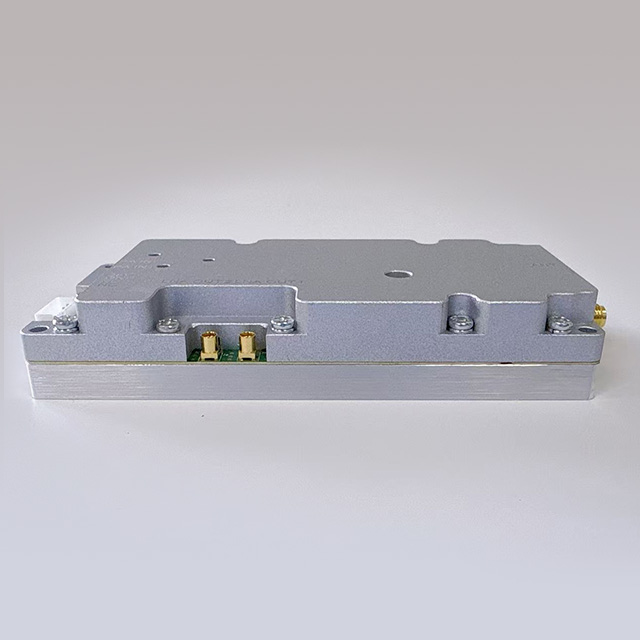

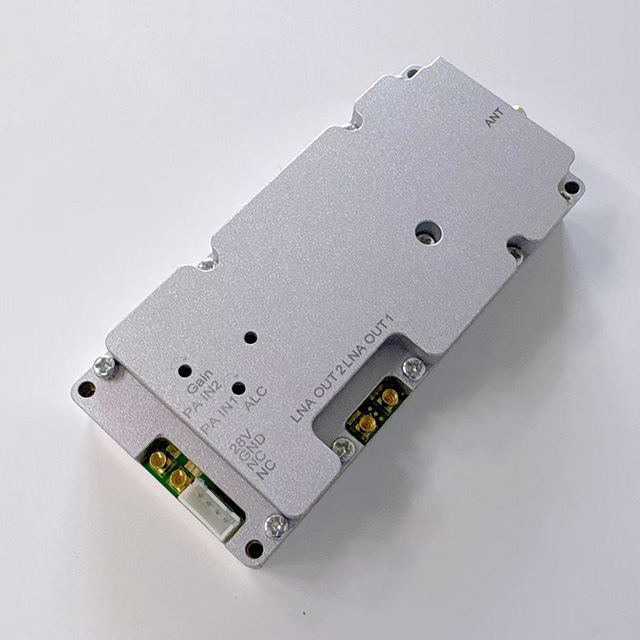

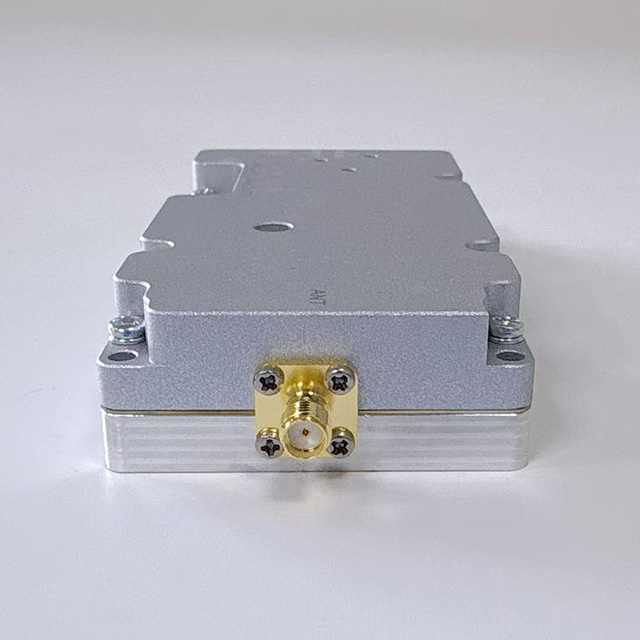

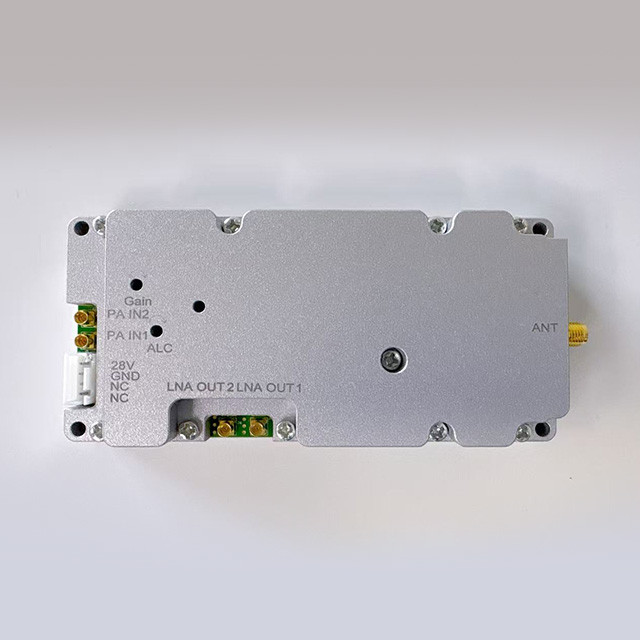

Sample:
