Features:
1. High reliability, stability and consistency.
2. Small size and low power consumption.
3. Equipped with power, VSWR, temperature and fault detection functions, as well as active fault reporting capability.
4. With ATT and ALC control functions.
5. Complete product series with comprehensive power levels to meet different application requirements.
Technical Specification:
Product Name:
1. UZI-FDD-N28-700M-2W-13255-DI-MCX
2. UZI-FDD-B5-800M-2W-13255-DI-MCX
3. UZI-FDD-B8-900M-2W-13255-DI-MCX
4. UZI-FDD-B3-1.8G-2W-13255-DI-MCX
5. UZI-FDD-B1-2.1G-2W-13255-DI-MCX
Items: | Uplink (UL) & Downlink (UL) Specifications: |
Frequency Range: | 1. N28: a. UL:703-748MHz b. DL:758-803MHz 2. B5 a. UL:824-849MHz b. DL:869-894MHz 3. B8 a. UL:890-915MHz b. DL:935-960MHz 4. B3 a. UL:1710-1785MHz b. DL:1805-1880MHz 5. B1 a. UL:1920-1980MHz b. DL:2110-2170MHz |
Max Gain: | 1. UL:15±2dB 2. DL:39±1dB |
Maximum Output Power: | 1. UL:Uncontrolled 2. DL:33±1dBm (with dielectric duplexer) |
Maximum Input Level: | 1. UL:NONE 2. DL:-5dBm |
Gain Adjustment Range: | 1. UL:NONE 2. DL:NONE |
ALC Range: | 1. UL:NONE 2. DL:NONE |
In-Band Ripple: | 1. UL:≤4dB 2. DL:≤4dB |
Noise Figure: | 1. UL:≤6dB 2. DL:NONE |
EVM: | ≤5% (Peak-to-Average Power Ratio 10.0dB) |
VSWR: | 1. ≤1.4 (Test condition: power on for testing after turning off the uplink power amplifier.) 2. ≤1.4 (Test condition: power on for testing after turning off the downlink power amplifier.) |
Operating Voltage: | 28V (power supply connector facing the side) |
Operating Current: | ≤1.5A |
Working Temperature: | -40~+55℃ |
Over-Temperature Protection: | Alarm and shutdown at +85℃, resume operation at 65℃ |
Monitoring Functions: | NONE |
Connecters: | 3 connectors in total, all are MCX-K connectors, and all connectors face the side. |
Mechanical Dimensions: | 132*55*17 |
Label: | Inspect the label according to the outline dimension drawing. |

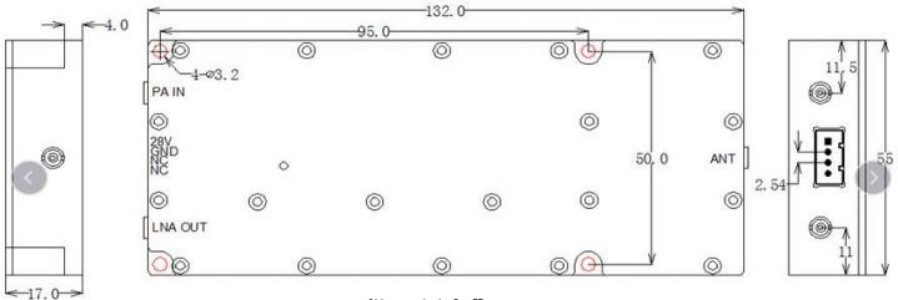

Dimensional Drawing:

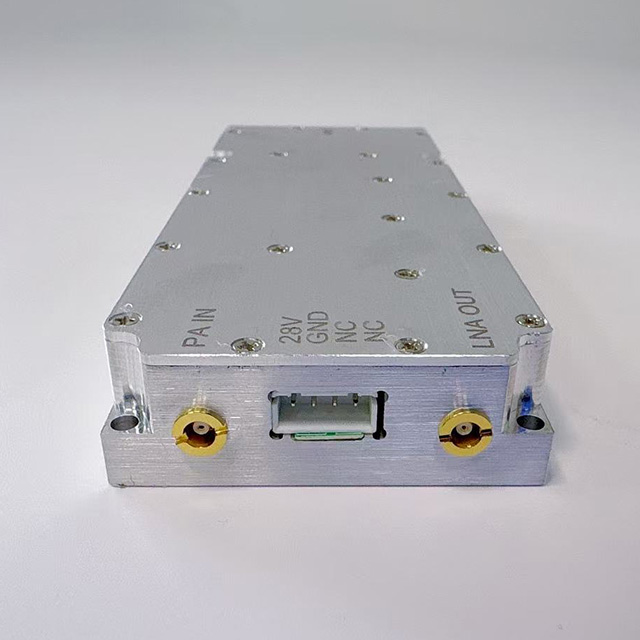

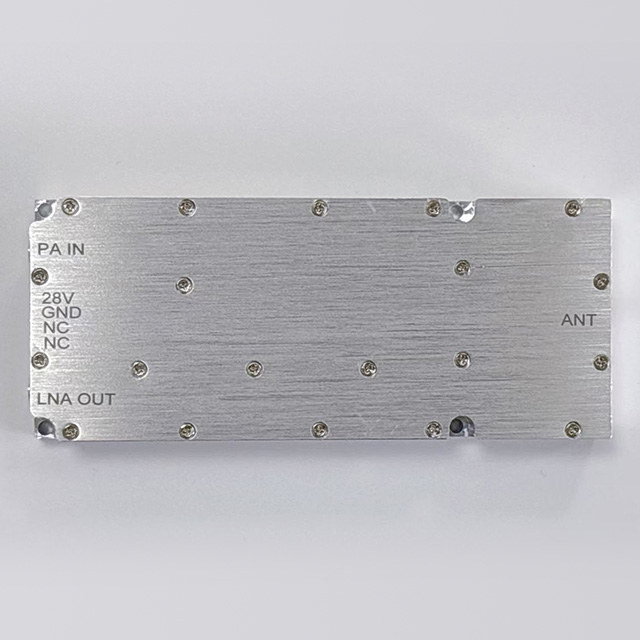

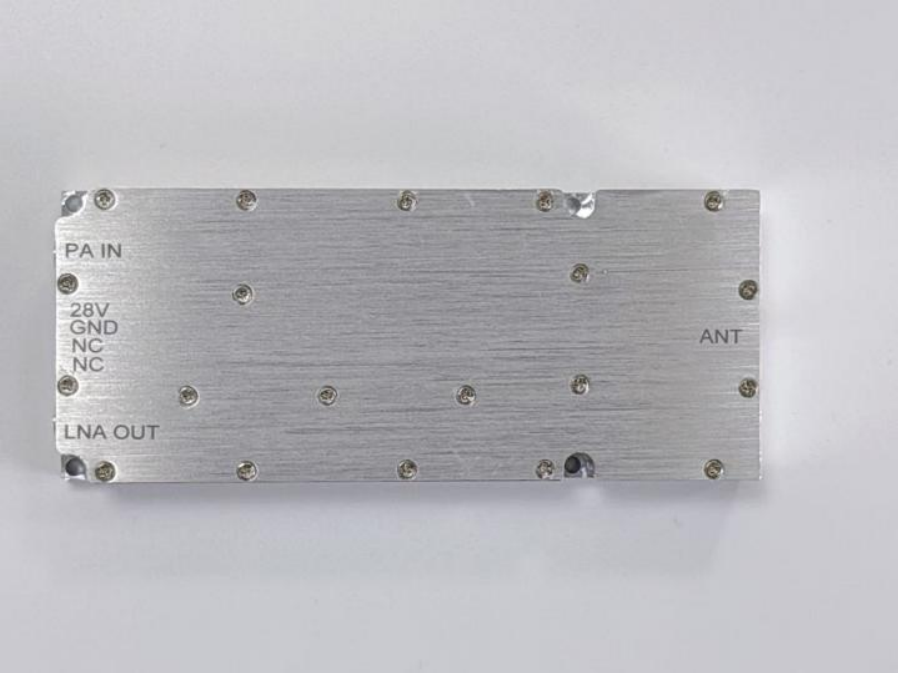

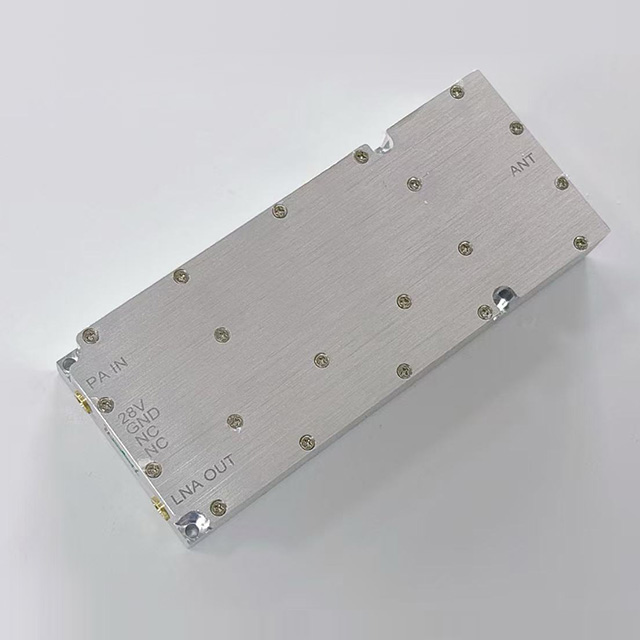

Sample:
